New

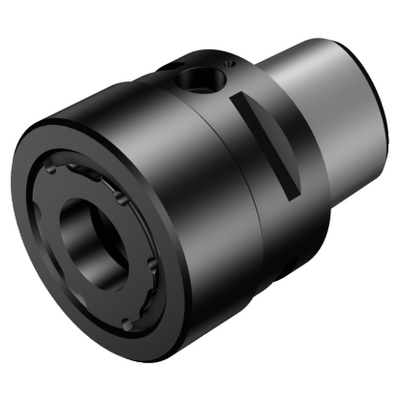

Generic representation
Available within a week
Package quantity: 1
ISO: C4-W-391.14-25035-A
Material Id: 8489560
EAN: 7323227764986
ANSI: C4-W-391.14-25035-A

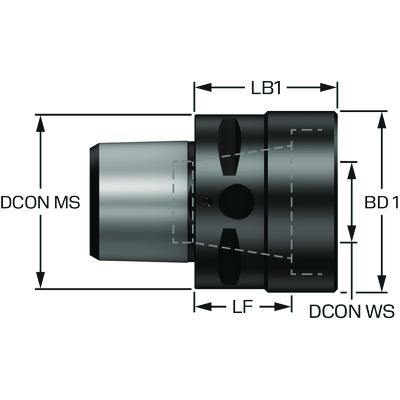

Technical illustrations
Technical illustrations
Product data
Connection - machine side(ADINTMS)
Coromant Capto (segment clamping only) -size C4
Connection - workpiece side
(ADINTWS)
ER collet (DIN6499-B) -ER25
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
axial concentric exit
Data chip pocket
(DCP)
Yes
Data chip pocket size(DCPS)
Dia.=10 mm/Height=4,5 mm
Connection diameter machine side(DCONMS)
40 mm
Functional diameter(DFC)
28 mm
Standard number(STDNO)
ISO26623-1
Connection diameter workpiece side(DCONWS)
26 mm
Kappa (z-axis rot)(KAP)
0 °
Functional length(LF)
23 mm
Body diameter(BD_1)
43 mm
Body length(LB_1)
35 mm
Body half taper angle(BHTA_1)
0 °
Body material(BMC)
Steel
Balancing method code(BLMC)
No balancing
Weight of item(WT)
0.35 kg
Overall length(OAL)
59 mm
Release date(ValFrom20)
10/24/25
Release pack id(RELEASEPACK)
26.1
