1P340-1000-XB 1640
1P340-1000-XB 1640
Generic representation
List price: 129.00 GBP
Available
Package quantity: 1
ISO: 1P340-1000-XB 1640
Material Id: 6259862
EAN: 26259862
ANSI: 1P340-1000-XB 1640

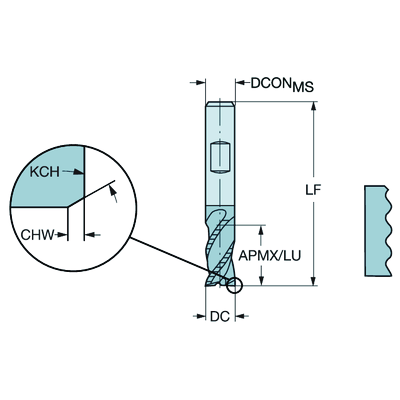

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
S
Peripheral effective cutting edge count(ZEFP)
4
Cutting diameter
(DC)
0.3937 in
Connection diameter machine side(DCONMS)
0.3937 in
Connection diameter tolerance(TCDCON)
h6
Depth of cut maximum
(APMX)
0.8661 in
Working engagement ratio maximum(AERMX)
1
Usable length
(LU)
0.8661 in
Functional length(LF)
2.8346 in
Rotational speed maximum(RPMX)
72,600 1/min
Connection - machine side(ADINTMS)
Weldon (DIN6535-HB) -metric: 10
Corner chamfer(KCH)
55 °
Corner chamfer width(CHW)
0.028 in
Maximum ramping angle(RMPX_FFW)
5 °
Depth of cut maximum(APMX_PFW)
0.8661 in
Flute helix angle(FHA)
37 °
Depth of cut maximum(APMX_FFW)
0.8661 in
Grade
(GRADE)
1640
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD AlCrN
Coolant entry style(CNSC)
without coolant entry
Lower cutting diameter tolerance(DCTOLL)
-0.0059 in
Upper cutting diameter tolerance(DCTOLU)
0 in
Tolerance class cutting diameter(TCDC)
h12
Cutting diameter face contact(DCF)
0.3378 in
Weight of item(WT)
0.1548 lb
Center cutting capability(CCC)
Yes
Interupted edge property(IEP)
Yes
Chip breaker(CBMD)
WAVECUT
Shank standard group(BSG)
DIN 6527 L
Radial rake angle(GAMF)
10 °
Axial rake angle(GAMP)
13.5 °
Overall length(OAL)
2.8346 in
Release date(ValFrom20)
14/08/2012
Release pack id(RELEASEPACK)
12.2
