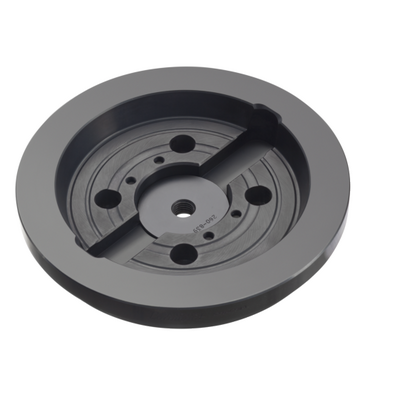

Generic representation
Package quantity: 1
ISO: 260-431M-1
Material Id: 5757532
EAN: 10157221
ANSI: 260-431M-1

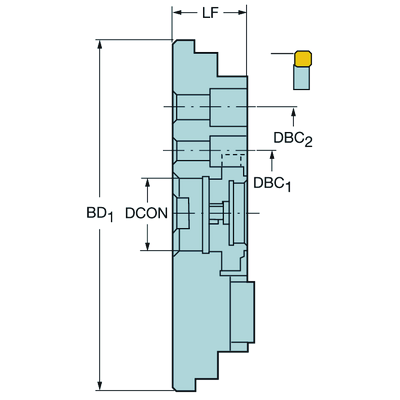

Technical illustrations
Product data
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -C (8 bolts) -metric: 60D
Connection - workpiece side
(ADINTWS)
Cap mounting -metric: 315
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Connection diameter machine side(DCONMS)
60 mm
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
C
Diameter bolt circle(DBC)
101.6 mm
Connection diameter workpiece side(DCONWS)
267.6 mm
Kappa (z-axis rot)(KAP)
0 °
Functional length(LF)
80 mm
Body diameter(BD_1)
228 mm
Body diameter(BD_2)
267.6 mm
Body diameter(BD_3)
287.4 mm
Body length(LB_1)
25 mm
Body length(LB_2)
44 mm
Body length(LB_3)
61 mm
Body half taper angle(BHTA_1)
0 °
Body half taper angle(BHTA_2)
0 °
Body half taper angle(BHTA_3)
0 °
Body material
(BMC)
Steel
Balancing method code(BLMC)
No balancing
Weight of item(WT)
30.7 kg
Overall length(OAL)
80 mm
Release date(ValFrom20)
12/09/1994
Release pack id(RELEASEPACK)
94.3
