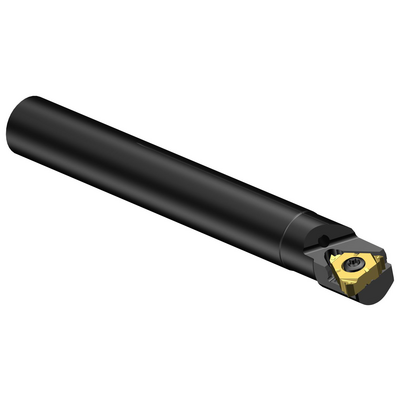

Specific representation
Available
Package quantity: 1
ISO: 266LKF-16-16-R
Material Id: 5961373
EAN: 25961373
ANSI: 266LKF-16-16-R
Technical illustrations
Product data
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroThread -internal size 16 -no shim (266.LL-16)
Axial clearance angle(ALP)
-15 °
Thread helix correction angle(THCA)
2 °
Connection - machine side(ADINTMS)
Cylindrical shank without clamping features (without flange) -metric: 16.00
Minimum bore diameter
(DMIN)
20 mm
Machine side body angle(BAMS)
0 °
Minimum overhang(OHN)
27 mm
Maximum overhang
(OHX)
48 mm
Usable length
(LU)
48 mm
Hand
(HAND)
Left
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
40 bar
Location aid property(LOCAP)
Yes
Connection diameter machine side(DCONMS)
16 mm
Functional length(LF)
125 mm
Functional width(WF)
12 mm
Functional height(HF)
0 mm
Body diameter(BD)
16 mm
Overall length(OAL)
125 mm
Torque(TQ)
3 Nm
Weight of item(WT)
0.1662 kg
Insert seat(SSC_M)
16
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
20/09/2011
Release pack id(RELEASEPACK)
11.2
