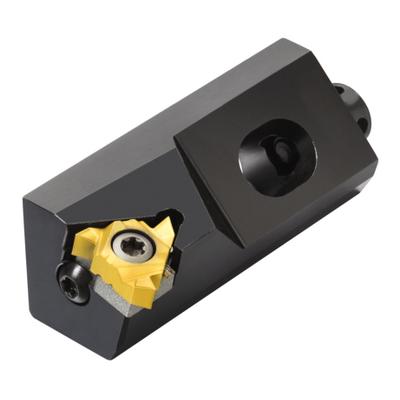

Generic representation
List price: 162.00 GBP
Available within a week
Package quantity: 1
ISO: 266LKF-16CA-16
Material Id: 5910840
EAN: 25910840
ANSI: 266LKF-16CA-16
Technical illustrations
Product data
Coolant exit style(CXSC)
no coolant exit
Axial clearance angle(ALP)
-15 °
Thread helix correction angle(THCA)
1 °
Connection - machine side(ADINTMS)
Cartridge (ISO5611) -left hand: 16CA
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroThread -internal size 16 (266.LL-16)
Minimum bore diameter
(DMIN)
55 mm
Maximum overhang
(OHX)
63 mm
Hand
(HAND)
Left
Shank width(B)
19 mm
Shank height(H)
21 mm
Mounting hole distance(MHD)
25 mm
Functional length(LF)
63 mm
Functional width(WF)
25 mm
Functional height(HF)
16 mm
Torque(TQ)
3 Nm
Weight of item(WT)
0.167 kg
Overall length(OAL)
63 mm
Insert seat(SSC_M)
16
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
25/08/2010
Release pack id(RELEASEPACK)
10.2
