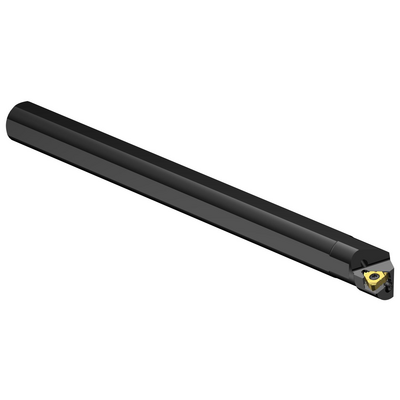

Specific representation
Available within a week
Package quantity: 1
ISO: 266LKF-D16-3
Material Id: 5757721
EAN: 12387686
ANSI: 266LKF-D16-3
Technical illustrations
Product data
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroThread -internal size 16 (266.LL-16)
Axial clearance angle(ALP)
-15 °
Thread helix correction angle(THCA)
1 °
Connection - machine side(ADINTMS)
Cylindrical shank w/ 3 flats -inch: 1
Minimum bore diameter
(DMIN)
32.004 mm
Machine side body angle(BAMS)
0 °
Minimum overhang(OHN)
28.956 mm
Maximum overhang
(OHX)
76.2 mm
Usable length
(LU)
76.2 mm
Hand
(HAND)
Left
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
40 bar
Connection diameter machine side(DCONMS)
25.4 mm
Shank height(H)
23.114 mm
Functional length(LF)
304.8 mm
Functional width(WF)
16.9926 mm
Functional height(HF)
0 mm
Body diameter(BD)
25.4 mm
Overall length(OAL)
304.8 mm
Torque(TQ)
3 Nm
Weight of item(WT)
0.989 kg
Insert seat(SSC_M)
16
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
10/09/2009
Release pack id(RELEASEPACK)
09.2
