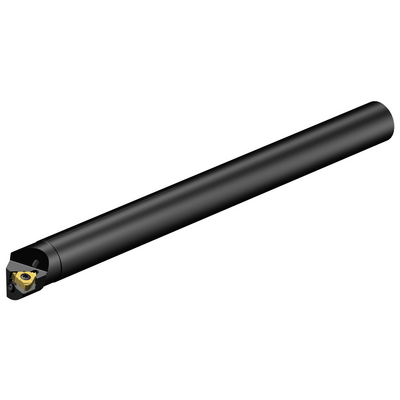

Specific representation
List price: 262.00 EUR
Available within a week
Package quantity: 1
ISO: 266RKF-D16-3-R
Material Id: 5856081
EAN: 25856081
ANSI: 266RKF-D16-3-R
Technical illustrations
Product data
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroThread -internal size 16 (266.RL-16)
Axial clearance angle(ALP)
-15 °
Thread helix correction angle(THCA)
1 °
Connection - machine side(ADINTMS)
Cylindrical shank without clamping features (without flange) -inch: 1
Minimum bore diameter
(DMIN)
32.004 mm
Machine side body angle(BAMS)
0 °
Minimum overhang(OHN)
28.956 mm
Maximum overhang
(OHX)
76.2 mm
Usable length
(LU)
76.2 mm
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
40 bar
Location aid property(LOCAP)
Yes
Connection diameter machine side(DCONMS)
25.4 mm
Functional length(LF)
304.8 mm
Functional width(WF)
16.9926 mm
Functional height(HF)
0 mm
Body diameter(BD)
25.4 mm
Overall length(OAL)
304.8 mm
Torque(TQ)
3 Nm
Weight of item(WT)
1.047 kg
Insert seat(SSC_M)
16
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
17/02/2010
Release pack id(RELEASEPACK)
10.1
