Generic representation
Package quantity: 1
ISO: 391.68B-5-07026S09B
Material Id: 5759594
EAN: 12178482
ANSI: 391.68B-5-07026S09B

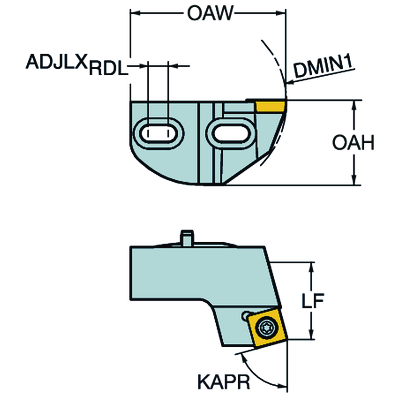

Technical illustrations
Product data
Tool cutting edge angle
(KAPR)
75 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
SCMT 09T308
Connection - machine side(ADINTMS)
Duobore slide -size 5
Minimum bore diameter
(DMIN)
55 mm
Hand
(HAND)
Right
Coolant entry style(CNSC)
without coolant entry
Protruding length(LPR)
28.2 mm
Functional length(LF)
26 mm
Functional width(WF)
17.5 mm
Overall length(OAL)
37.7 mm
Overall height(OAH)
25.7 mm
Overall width(OAW)
49.5 mm
Torque(TQ)
3 Nm
Weight of item(WT)
0.1208 kg
Insert seat(SSC_M)
09
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
14/08/2006
Release pack id(RELEASEPACK)
06.2
