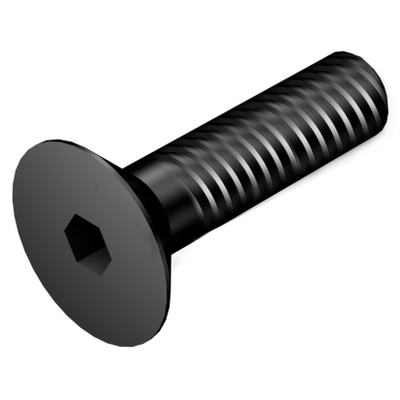

Generic representation
Package quantity: 1
ISO: 5513 010-08
Material Id: 5763053
EAN: 11885565
ANSI: 5513 010-08
Technical illustrations
Product data
Body material
(BMC)
Steel
Type of head(HEAD_TYPE)
countersunk flat head
Geometrical characteristic driven part(KGRPTP_1)
hexagon
Size of driven part(KGRPS_1)
HEX 4
Head diameter(HDD)
13.6 mm
Head length(LH)
3.35 mm
Taper angle(TA)
90 °
Thread diameter size(TDZ_2)
M 8
Thread hand(THDH_2)
Right
Thread length(THLGTH_2)
8.65 mm
Overall length(OAL)
12 mm
Body length(LB)
12 mm
Coolant exit style(CXSC)
no coolant exit
Coolant entry style(CNSC)
without coolant entry
Weight of item(WT)
0.005 kg
Release date(ValFrom20)
09/08/2004
Release pack id(RELEASEPACK)
04.2
