820-200SP18Y-C10 content_copy

820-200SP18Y-C10

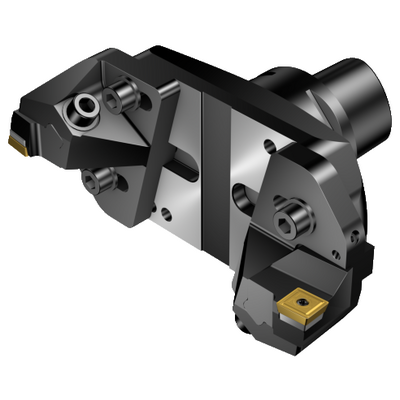

Generic representation
List price: 2 745.00 GBPfile_copy
Available
Package quantity: 1
ISO: 820-200SP18Y-C10file_copy
Material Id: 7213216file_copy
EAN: 7323221635282file_copy
ANSI: 820-200SP18Y-C10file_copy

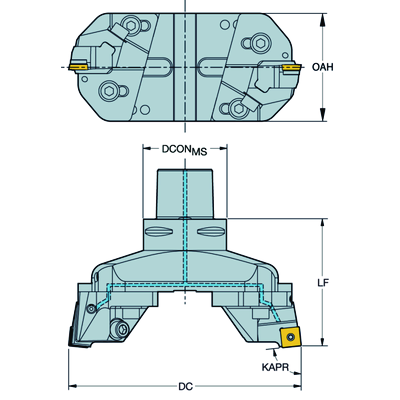

Technical illustrations
Technical illustrations
Product data
Minimum cutting diameter(DCN)info
148 mmSearch Icon
Maximum cutting diameter(DCX)info
200 mmSearch Icon
Maximum adjustment limit(ADJLX)info
26 mmSearch Icon
Tool cutting edge angle (KAPR)info
84 °Search Icon
Cutting item count(CICT)info
2Search Icon
Clamping type code(MTP)info
clamp with screw through holeSearch Icon
Insert type(CUTINT_MASTER)info
CoroBore SP18 (SPMT 1810-BM)Search Icon
Connection - machine side(ADINTMS)info
Coromant Capto (bolt and segment clamping) -size C10Search Icon
Coolant entry style(CNSC)info
axial concentric and radial entrySearch Icon
Coolant pressure(CP)info
70 barSearch Icon
Connection diameter(DCONMS)info
100 mmSearch Icon
Standard number(STDNO)info
ISO26623-1Search Icon
Functional length(LF)info
128 mmSearch Icon
Overall length(OAL)info
190 mmSearch Icon
Overall height(OAH)info
104 mmSearch Icon
Torque(TQ)info
3 NmSearch Icon
Body material (BMC)info
SteelSearch Icon
Weight of item(WT)info
8.94 kgSearch Icon
Insert seat size code imperial view(SSC_N)info
18Search Icon
Insert seat(SSC_M)info
18Search Icon
Release date(ValFrom20)info
19/02/2017Search Icon
Release pack id(RELEASEPACK)info
17.1Search Icon
