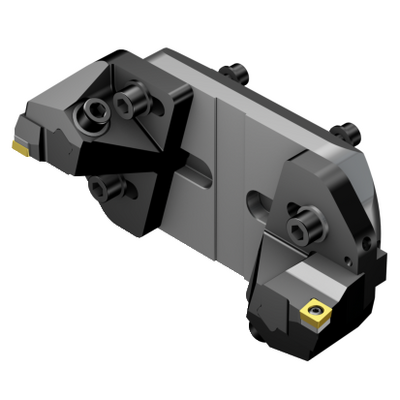

Generic representation
Package quantity: 1
ISO: 820D-250CC12
Material Id: 6764262
EAN: 26764262
ANSI: 820D-250CC12

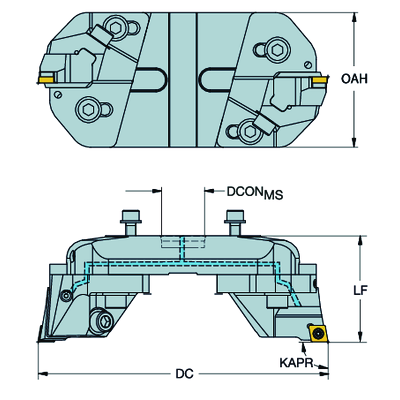

Technical illustrations
Product data
Minimum cutting diameter(DCN)
198 mm
Maximum cutting diameter(DCX)
250 mm
Maximum adjustment limit(ADJLX)
26 mm
Tool cutting edge angle
(KAPR)
90 °
Cutting item count(CICT)
2
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CCMT 120408
Connection - machine side(ADINTMS)
Boring arbor -2 key drives -metric: 33
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
70 bar
Connection diameter machine side(DCONMS)
33 mm
Diameter bolt circle(DBC)
101.6 mm
Functional length(LF)
82 mm
Overall length(OAL)
82 mm
Overall height(OAH)
104 mm
Overall width(OAW)
198 mm
Torque(TQ)
3 Nm
Body material
(BMC)
Steel and aluminium
Weight of item(WT)
3.67 kg
Insert seat size code imperial view(SSC_N)
1/2
Insert seat(SSC_M)
12
Release date(ValFrom20)
23/09/2015
Release pack id(RELEASEPACK)
15.2
