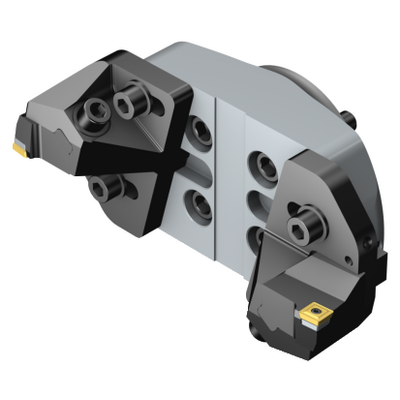

Generic representation
List price: 2 284.00 GBP
Made-to-order
Package quantity: 1
ISO: 820L-200SP12Y
Material Id: 7591766
EAN: 7323223832856
ANSI: 820L-200SP12Y

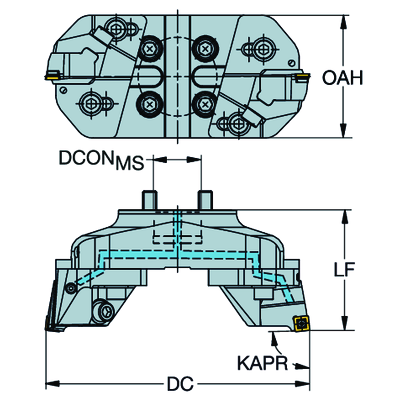

Technical illustrations
Technical illustrations
Product data
Minimum cutting diameter(DCN)
148 mm
Maximum cutting diameter(DCX)
200 mm
Maximum adjustment limit(ADJLX)
26 mm
Tool cutting edge angle
(KAPR)
84 °
Cutting item count(CICT)
2
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroBore SP12 (SPMT 1210-BM)
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -C (4 bolts) -metric: 40S
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
70 bar
Connection diameter machine side(DCONMS)
40 mm
Hub diameter(DHUB)
100 mm
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
C
Diameter bolt circle(DBC)
66.7 mm
Functional length(LF)
102 mm
Overall length(OAL)
102 mm
Overall height(OAH)
104 mm
Torque(TQ)
3 Nm
Body material
(BMC)
Steel and aluminium
Weight of item(WT)
3.86 kg
Insert seat size code imperial view(SSC_N)
12
Insert seat(SSC_M)
12
Release date(ValFrom20)
22/09/2018
Release pack id(RELEASEPACK)
18.2
