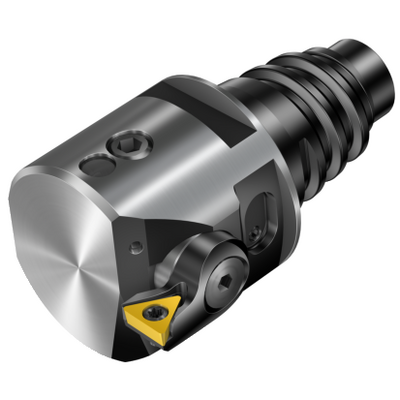

Generic representation
Package quantity: 1
ISO: 825-23TC06-EH16
Material Id: 6424084
EAN: 26424084
ANSI: 825-23TC06-EH16

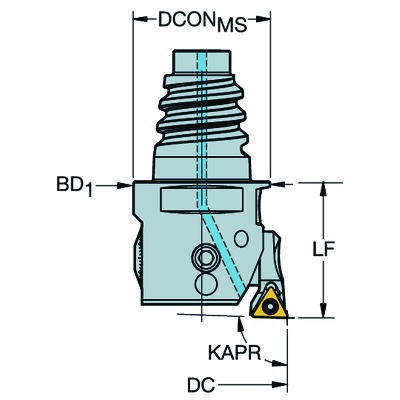

Technical illustrations
Product data
Minimum cutting diameter(DCN)
19 mm
Maximum cutting diameter(DCX)
23 mm
Maximum adjustment limit(ADJLX)
2 mm
Tool cutting edge angle
(KAPR)
92 °
Cutting item count(CICT)
1
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 06T102 (RE<0.4)
Connection - machine side(ADINTMS)
Coromant EH -metric - E16
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
70 bar
Connection diameter machine side(DCONMS)
15.5 mm
Functional length(LF)
25 mm
Body diameter(BD)
18 mm
Body length(LB)
25 mm
Overall length(OAL)
42 mm
Torque(TQ)
0.6 Nm
Body material
(BMC)
Steel
Weight of item(WT)
0.4 kg
Insert seat size code imperial view(SSC_N)
5/32
Insert seat(SSC_M)
06
Release date(ValFrom20)
24/09/2013
Release pack id(RELEASEPACK)
13.2
