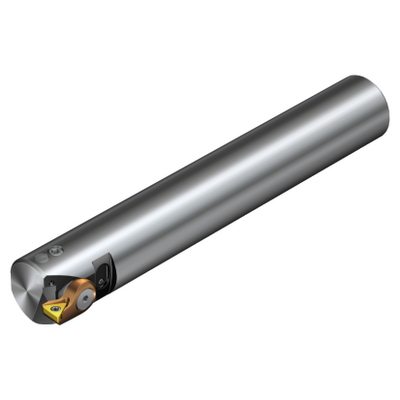

Generic representation
Package quantity: 1
ISO: 825-29TC06-A20
Material Id: 6352204
EAN: 26352204
ANSI: 825-29TC06-A20

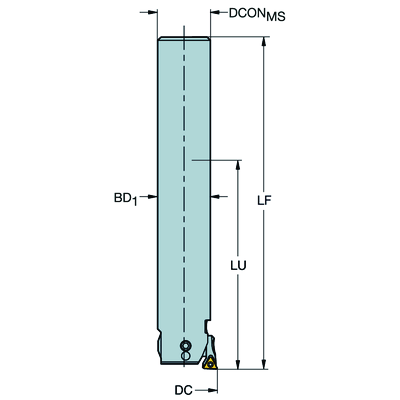

Technical illustrations
Product data
Minimum cutting diameter(DCN)
0.9055 inch
Maximum cutting diameter(DCX)
1.1417 inch
Maximum adjustment limit(ADJLX)
0.1181 inch
Tool cutting edge angle
(KAPR)
92 °
Cutting item count(CICT)
1
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 06T102 (RE<0.4)
Usable length
(LU)
3.189 inch
Connection - machine side(ADINTMS)
Cylindrical shank without clamping features (without flange) -metric: 20.0
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
1,015.2642 lbf/in2
Connection diameter machine side(DCONMS)
0.7874 inch
Functional length(LF)
5.1969 inch
Body diameter(BD)
0.7874 inch
Body length(LB)
3.189 inch
Overall length(OAL)
5.1969 inch
Torque(TQ)
0.4425 ftlbf
Body material
(BMC)
Steel
Weight of item(WT)
1.3625 lb
Insert seat size code imperial view(SSC_N)
5/32
Insert seat(SSC_M)
06
Release date(ValFrom20)
23/02/2013
Release pack id(RELEASEPACK)
13.1
