Generic representation
Package quantity: 1
ISO: 825-36TC06-C4
Material Id: 6352209
EAN: 26352209
ANSI: 825-36TC06-C4

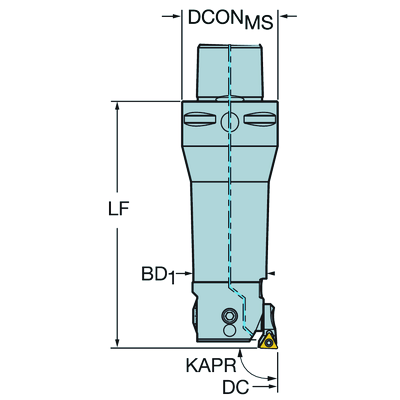

Technical illustrations
Product data
Minimum cutting diameter(DCN)
28 mm
Maximum cutting diameter(DCX)
36 mm
Maximum adjustment limit(ADJLX)
4 mm
Tool cutting edge angle
(KAPR)
92 °
Cutting item count(CICT)
1
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 06T102 (RE<0.4)
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C4
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
70 bar
Connection diameter machine side(DCONMS)
40 mm
Standard number(STDNO)
ISO26623-1
Functional length(LF)
95 mm
Body diameter(BD)
25 mm
Body length(LB)
36 mm
Overall length(OAL)
119 mm
Torque(TQ)
0.6 Nm
Body material
(BMC)
Steel
Weight of item(WT)
0.906 kg
Insert seat size code imperial view(SSC_N)
5/32
Insert seat(SSC_M)
06
Release date(ValFrom20)
23/02/2013
Release pack id(RELEASEPACK)
13.1
