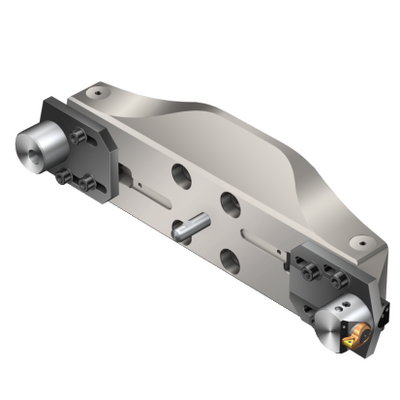

Generic representation
Package quantity: 1
ISO: 825-555TC11
Material Id: 6352249
EAN: 26352249
ANSI: 825-555TC11
Technical illustrations
Product data
Minimum cutting diameter(DCN)
458 mm
Maximum cutting diameter(DCX)
555 mm
Maximum adjustment limit(ADJLX)
48.5 mm
Tool cutting edge angle
(KAPR)
92 °
Cutting item count(CICT)
1
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 110304 (RE<0.4)
Connection - machine side(ADINTMS)
CoroBore XL Arbor -metric: 40X
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
70 bar
Connection diameter machine side(DCONMS)
40 mm
Hub diameter(DHUB)
160 mm
Diameter bolt circle(DBC)
101.6 mm
Functional length(LF)
124 mm
Body diameter(BD)
455 mm
Body length(LB)
124 mm
Overall length(OAL)
124 mm
Overall height(OAH)
164 mm
Torque(TQ)
0.9 Nm
Body material
(BMC)
Steel and aluminium
Weight of item(WT)
13.19 kg
Insert seat size code imperial view(SSC_N)
1/4
Insert seat(SSC_M)
11
Release date(ValFrom20)
23/02/2013
Release pack id(RELEASEPACK)
13.1
