825D-137TC11U-C8M
825D-137TC11U-C8M
Generic representation
Package quantity: 1
ISO: 825D-137TC11U-C8M
Material Id: 7591909
EAN: 7323223833983
ANSI: 825D-137TC11U-C8M

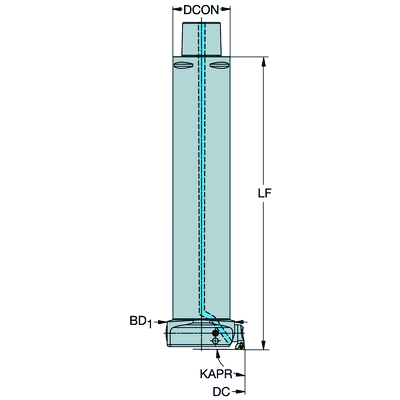

Technical illustrations
Product data
Minimum cutting diameter(DCN)
106 mm
Maximum cutting diameter(DCX)
137 mm
Maximum adjustment limit(ADJLX)
15.5 mm
Tool cutting edge angle
(KAPR)
92 °
Cutting item count(CICT)
1
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 110304 (RE<0.4)
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C8
Silent Tools™
(DPC)
Yes
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
70 bar
Connection diameter machine side(DCONMS)
80 mm
Standard number(STDNO)
ISO26623-1
Functional length(LF)
500 mm
Body diameter(BD)
100 mm
Body length(LB)
500 mm
Overall length(OAL)
548 mm
Overall height(OAH)
81 mm
Torque(TQ)
0.9 Nm
Body material
(BMC)
Steel and aluminium
Weight of item(WT)
18.199 kg
Insert seat size code imperial view(SSC_N)
1/4
Insert seat(SSC_M)
11
Release date(ValFrom20)
23/02/2019
Release pack id(RELEASEPACK)
19.1
