Generic representation
Package quantity: 1
ISO: 825L-167TC11-C8
Material Id: 6424024
EAN: 26424024
ANSI: 825L-167TC11-C8

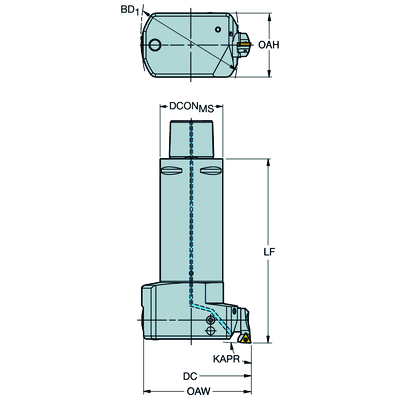

Technical illustrations
Product data
Minimum cutting diameter(DCN)
136 mm
Maximum cutting diameter(DCX)
167 mm
Maximum adjustment limit(ADJLX)
15.5 mm
Tool cutting edge angle
(KAPR)
92 °
Cutting item count(CICT)
1
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 110304 (RE<0.4)
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C8
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
70 bar
Connection diameter machine side(DCONMS)
80 mm
Standard number(STDNO)
ISO26623-1
Functional length(LF)
200 mm
Body diameter(BD)
130 mm
Body length(LB)
200 mm
Overall length(OAL)
248 mm
Overall height(OAH)
80 mm
Torque(TQ)
0.9 Nm
Body material
(BMC)
Steel and aluminium
Weight of item(WT)
5.16 kg
Insert seat size code imperial view(SSC_N)
1/4
Insert seat(SSC_M)
11
Release date(ValFrom20)
24/09/2013
Release pack id(RELEASEPACK)
13.2
