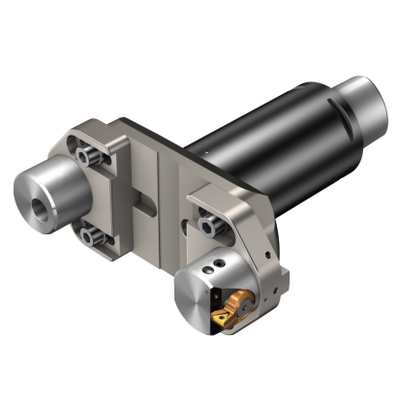

Generic representation
Package quantity: 1
ISO: 825L-265TC11-C8
Material Id: 6424036
EAN: 26424036
ANSI: 825L-265TC11-C8

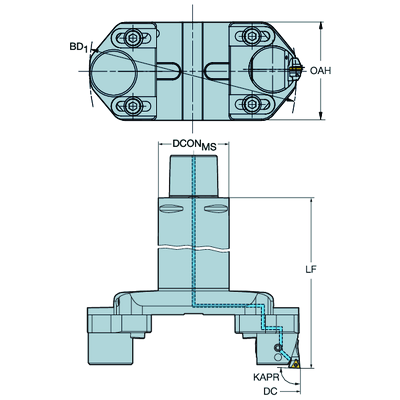

Technical illustrations
Product data
Minimum cutting diameter(DCN)
198 mm
Maximum cutting diameter(DCX)
265 mm
Maximum adjustment limit(ADJLX)
33.5 mm
Tool cutting edge angle
(KAPR)
92 °
Cutting item count(CICT)
1
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 110304 (RE<0.4)
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C8
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
70 bar
Connection diameter machine side(DCONMS)
80 mm
Standard number(STDNO)
ISO26623-1
Functional length(LF)
230 mm
Body diameter(BD)
195 mm
Body length(LB)
230 mm
Overall length(OAL)
278 mm
Overall height(OAH)
104 mm
Torque(TQ)
0.9 Nm
Body material
(BMC)
Steel and aluminium
Weight of item(WT)
8.32 kg
Insert seat size code imperial view(SSC_N)
1/4
Insert seat(SSC_M)
11
Release date(ValFrom20)
24/09/2013
Release pack id(RELEASEPACK)
13.2
