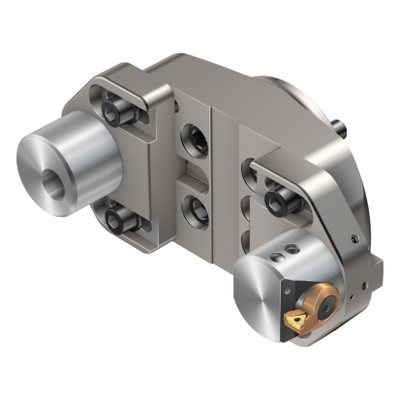

Generic representation
Package quantity: 1
ISO: 825L-315TC11
Material Id: 6424044
EAN: 26424044
ANSI: 825L-315TC11

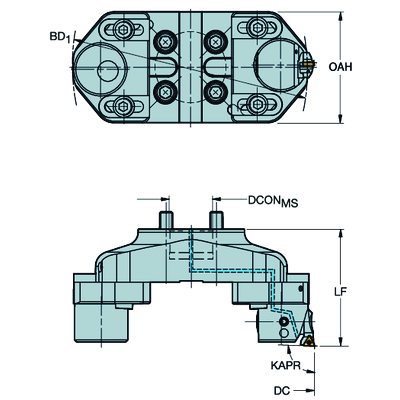

Technical illustrations
Product data
Minimum cutting diameter(DCN)
248 mm
Maximum cutting diameter(DCX)
315 mm
Maximum adjustment limit(ADJLX)
33.5 mm
Tool cutting edge angle
(KAPR)
92 °
Cutting item count(CICT)
1
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 110304 (RE<0.4)
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -C (4 bolts) -metric: 40S
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
70 bar
Connection diameter machine side(DCONMS)
40 mm
Hub diameter(DHUB)
100 mm
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
C
Diameter bolt circle(DBC)
66.7 mm
Functional length(LF)
110 mm
Body diameter(BD)
245 mm
Body length(LB)
110 mm
Overall length(OAL)
110 mm
Overall height(OAH)
104 mm
Torque(TQ)
0.9 Nm
Body material
(BMC)
Steel and aluminium
Weight of item(WT)
5.37 kg
Insert seat size code imperial view(SSC_N)
1/4
Insert seat(SSC_M)
11
Release date(ValFrom20)
24/09/2013
Release pack id(RELEASEPACK)
13.2
