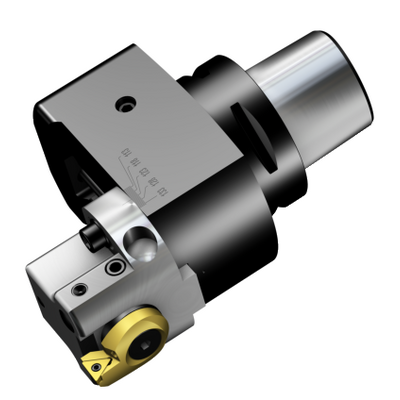

Generic representation
Package quantity: 1
ISO: 826-154TC11-C6HP
Material Id: 6873063
EAN: 7323220290901
ANSI: 826-154TC11-C6HP
Technical illustrations
Product data
Minimum cutting diameter(DCN)
133.35 mm
Maximum cutting diameter(DCX)
154.65 mm
Maximum adjustment limit(ADJLX)
10.65 mm
Tool cutting edge angle
(KAPR)
92 °
Cutting item count(CICT)
1
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 110304 (RE<0.4)
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C6
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
70 bar
Connection diameter machine side(DCONMS)
63 mm
Standard number(STDNO)
ISO26623-1
Functional length(LF)
113 mm
Body diameter(BD)
125 mm
Body length(LB)
113 mm
Overall length(OAL)
151 mm
Overall height(OAH)
63 mm
Torque(TQ)
0.9 Nm
Body material
(BMC)
Steel
Weight of item(WT)
3.94 kg
Insert seat size code imperial view(SSC_N)
1/4
Insert seat(SSC_M)
11
Release date(ValFrom20)
23/09/2015
Release pack id(RELEASEPACK)
15.2
