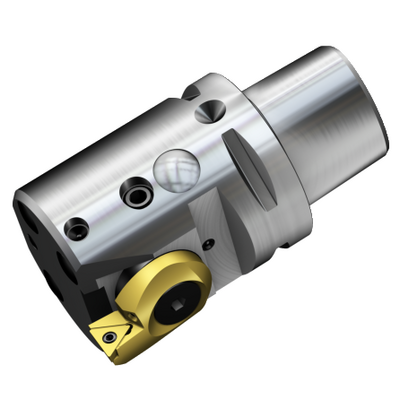

Generic representation
Package quantity: 1
ISO: 826-73TC11-C5HP
Material Id: 6873042
EAN: 7323220290697
ANSI: 826-73TC11-C5HP

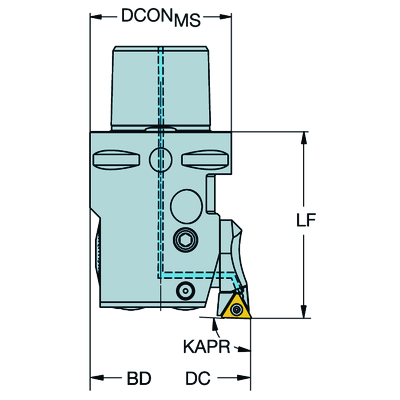

Technical illustrations
Product data
Minimum cutting diameter(DCN)
72.35 mm
Maximum cutting diameter(DCX)
73.65 mm
Maximum adjustment limit(ADJLX)
0.65 mm
Tool cutting edge angle
(KAPR)
92 °
Cutting item count(CICT)
1
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 110304 (RE<0.4)
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C5
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
70 bar
Connection diameter machine side(DCONMS)
50 mm
Standard number(STDNO)
ISO26623-1
Functional length(LF)
66 mm
Body diameter(BD)
50 mm
Body length(LB)
66 mm
Overall length(OAL)
96 mm
Torque(TQ)
0.9 Nm
Body material
(BMC)
Steel
Weight of item(WT)
1.557 kg
Insert seat size code imperial view(SSC_N)
1/4
Insert seat(SSC_M)
11
Release date(ValFrom20)
23/09/2015
Release pack id(RELEASEPACK)
15.2
