Generic representation
Package quantity: 1
ISO: 826D-257TC11HP
Material Id: 7866459
EAN: 7323225079044
ANSI: 826D-257TC11HP

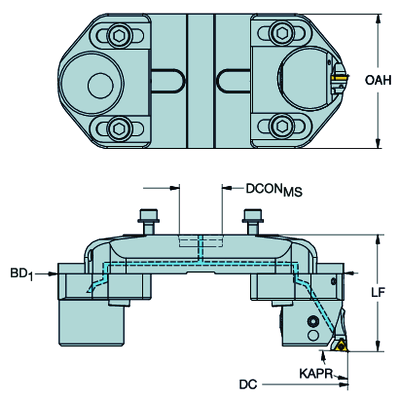

Technical illustrations
Product data
Minimum cutting diameter(DCN)
204.35 mm
Maximum cutting diameter(DCX)
257.65 mm
Maximum adjustment limit(ADJLX)
26.65 mm
Tool cutting edge angle
(KAPR)
92 °
Cutting item count(CICT)
1
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 110304 (RE<0.4)
Connection - machine side(ADINTMS)
Boring arbor -2 key drives -metric: 33
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
70 bar
Connection diameter machine side(DCONMS)
33 mm
Diameter bolt circle(DBC)
101.6 mm
Functional length(LF)
97 mm
Body diameter(BD)
195 mm
Body length(LB)
97 mm
Overall length(OAL)
97 mm
Overall height(OAH)
104 mm
Torque(TQ)
0.9 Nm
Body material
(BMC)
Steel and aluminium
Weight of item(WT)
3.11 kg
Insert seat size code imperial view(SSC_N)
1/4
Insert seat(SSC_M)
11
Release date(ValFrom20)
12/11/2019
Release pack id(RELEASEPACK)
20.1
