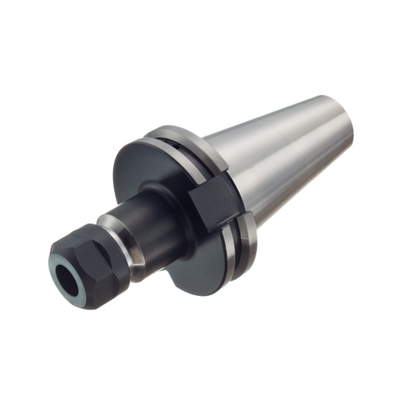

Generic representation
List price: 112.00 GBP
Available
Package quantity: 1
ISO: A1B14-40 25 070
Material Id: 5721861
EAN: 12242845
ANSI: A1B14-40 25 070

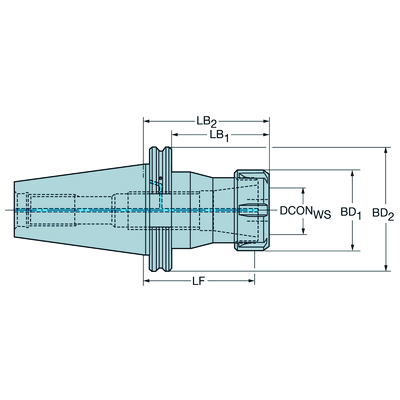

Technical illustrations
Technical illustrations
Product data
Connection - machine side(ADINTMS)
ISO7388.1/DIN69871 -AD/B central/flange: ISO40
Connection - workpiece side
(ADINTWS)
ER collet (DIN6499-B) -ER25
Coolant entry style(CNSC)
decentral over flange and axial
Coolant exit style(CXSC)
axial concentric exit
Coolant pressure(CP)
80 bar
Data chip pocket
(DCP)
Yes
Data chip pocket size(DCPS)
Dia.=10 mm/Height=4,5 mm
Functional diameter(DFC)
44.45 mm
Standard number(STDNO)
ISO7388-1
Standard letter(STDLET)
AD/AF
Connection retention knob thread size(CRKS)
Metric M16
Connection diameter workpiece side(DCONWS)
26 mm
Kappa (z-axis rot)(KAP)
0 °
Functional length(LF)
58.34 mm
Body diameter(BD_1)
42 mm
Body diameter(BD_2)
63.5 mm
Body length(LB_1)
50.9 mm
Body length(LB_2)
70 mm
Body half taper angle(BHTA_1)
0 °
Body half taper angle(BHTA_2)
0 °
Rotational speed maximum(RPMX)
18,000 1/min
Body material
(BMC)
Steel
Balancing method code(BLMC)
Balancing by design
Weight of item(WT)
1.064 kg
Overall length(OAL)
138.4 mm
Release date(ValFrom20)
06/11/2006
Release pack id(RELEASEPACK)
07.1
