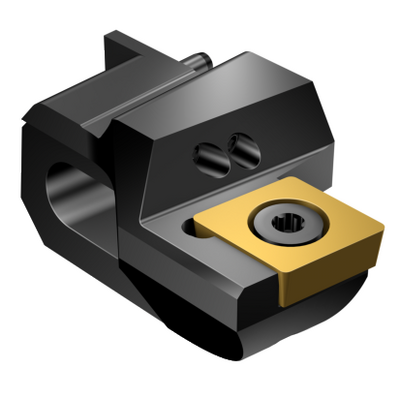

Generic representation
Package quantity: 1
ISO: BR10-DA-CC06F-00
Material Id: 7255154
EAN: 7323221824686
ANSI: BR10-DA-CC06F-00

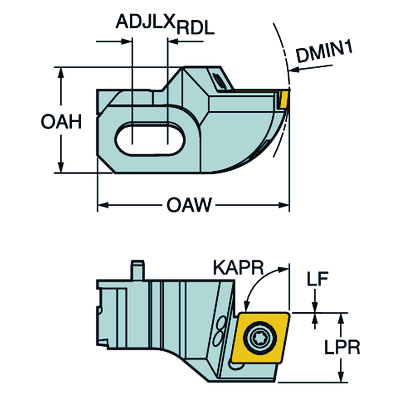

Technical illustrations
Product data
Tool cutting edge angle
(KAPR)
90 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CCMT 060204
Connection - machine side(ADINTMS)
BR10 slide -size D (side A)
Minimum bore diameter
(DMIN)
53 mm
Adjustability(ADJBY)
Yes
Hand
(HAND)
Left
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
70 bar
Protruding length(LPR)
10 mm
Functional length(LF)
0 mm
Functional width(WF)
22 mm
Overall length(OAL)
21.5 mm
Overall height(OAH)
21.5 mm
Overall width(OAW)
35.5 mm
Torque(TQ)
0.9 Nm
Weight of item(WT)
0.046 kg
Insert seat(SSC_M)
06
Insert seat size code imperial view(SSC_N)
1/4
Release date(ValFrom20)
19/02/2017
Release pack id(RELEASEPACK)
17.1
