BR20D-116CC12F-C6M
BR20D-116CC12F-C6M
New
Generic representation
Package quantity: 1
ISO: BR20D-116CC12F-C6M
Material Id: 8320680
EAN: 7323227064321
ANSI: BR20D-116CC12F-C6M

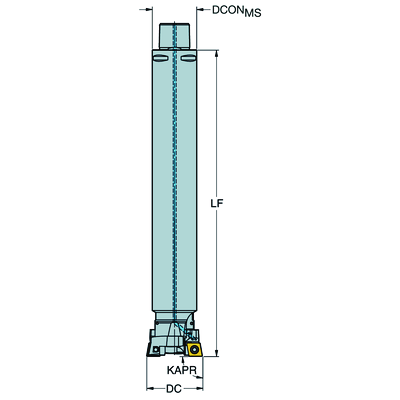

Technical illustrations
Product data
Minimum cutting diameter(DCN)
3.5039 inch
Maximum cutting diameter(DCX)
4.5669 inch
Maximum adjustment limit(ADJLX)
0.5315 inch
Tool cutting edge angle
(KAPR)
90 °
Cutting item count(CICT)
2
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CCMT 120408
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C6
Silent Tools™
(DPC)
Yes
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
1,015.2642 lbf/in2
Connection diameter machine side(DCONMS)
2.4803 inch
Standard number(STDNO)
ISO26623-1
Functional length(LF)
15.748 inch
Body diameter(BD)
3.1496 inch
Body length(LB)
15.748 inch
Overall length(OAL)
17.2441 inch
Torque(TQ)
2.2127 ftlbf
Body material
(BMC)
Steel
Weight of item(WT)
23.1926 lb
Insert seat size code imperial view(SSC_N)
1/2
Insert seat(SSC_M)
12
Release date(ValFrom20)
09/01/2025
Release pack id(RELEASEPACK)
25.1
