Generic representation
Package quantity: 1
ISO: BR30-45CC06F-C3
Material Id: 7254532
EAN: 7323221821630
ANSI: BR30-45CC06F-C3

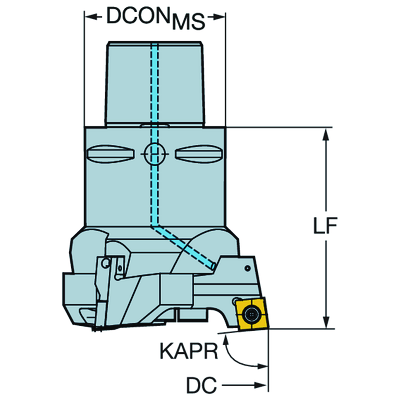

Technical illustrations
Product data
Minimum cutting diameter(DCN)
39.5 mm
Maximum cutting diameter(DCX)
45 mm
Maximum adjustment limit(ADJLX)
2.75 mm
Tool cutting edge angle
(KAPR)
90 °
Cutting item count(CICT)
3
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CCMT 060204
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C3
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
70 bar
Connection diameter machine side(DCONMS)
32 mm
Standard number(STDNO)
ISO26623-1
Functional length(LF)
48 mm
Overall length(OAL)
67 mm
Torque(TQ)
0.9 Nm
Body material
(BMC)
Steel
Weight of item(WT)
0.28 kg
Insert seat size code imperial view(SSC_N)
1/4
Insert seat(SSC_M)
06
Release date(ValFrom20)
19/02/2017
Release pack id(RELEASEPACK)
17.1
