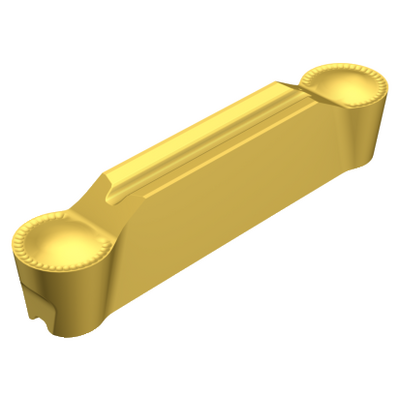

Generic representation
Package quantity: 5
ISO: C2I-G2N-0400-RM 1135
Material Id: 8290304
EAN: 7323226942927
ANSI: C2I-G2N-0400-RM 1135
Start values
| P2.1.Z.AN, Hardness: 175 HB | ||
| p |  | fn 0.005 in/r (0.002 - 0.008) vc 430 sfm (560 - 370) |
 | ap 0.037 in (0.008 - 0.051) fn 0.016 in/r (0.008 - 0.024) vc 325 sfm (405 - 285) | |
| M1.0.Z.AQ, Hardness: 200 HB | ||
| m | | fn 0.005 in/r (0.002 - 0.008) vc 350 sfm (460 - 295) |
| ap 0.037 in (0.008 - 0.051) fn 0.016 in/r (0.008 - 0.024) vc 260 sfm (330 - 225) | |
| K2.2.C.UT, Hardness: 245 HB | ||
| k | | fn 0.005 in/r (0.002 - 0.008) vc 300 sfm (375 - 265) |
| ap 0.037 in (0.008 - 0.051) fn 0.016 in/r (0.008 - 0.024) vc 235 sfm (285 - 210) | |
| S2.0.Z.AG, Hardness: 350 HB | ||
| s | | fn 0.005 in/r (0.002 - 0.008) vc 90 sfm (110 - 80) |
| ap 0.032 in (0.008 - 0.045) fn 0.016 in/r (0.008 - 0.024) vc 70 sfm (85 - 60) | |
| | |
|---|---|---|
| P2.1.Z.AN, Hardness: 175 HB | ||
| p | fn 0.005 in/r (0.002 - 0.008) vc 430 sfm (560 - 370) | ap 0.037 in (0.008 - 0.051) fn 0.016 in/r (0.008 - 0.024) vc 325 sfm (405 - 285) |
| M1.0.Z.AQ, Hardness: 200 HB | ||
| m | fn 0.005 in/r (0.002 - 0.008) vc 350 sfm (460 - 295) | ap 0.037 in (0.008 - 0.051) fn 0.016 in/r (0.008 - 0.024) vc 260 sfm (330 - 225) |
| K2.2.C.UT, Hardness: 245 HB | ||
| k | fn 0.005 in/r (0.002 - 0.008) vc 300 sfm (375 - 265) | ap 0.037 in (0.008 - 0.051) fn 0.016 in/r (0.008 - 0.024) vc 235 sfm (285 - 210) |
| S2.0.Z.AG, Hardness: 350 HB | ||
| s | fn 0.005 in/r (0.002 - 0.008) vc 90 sfm (110 - 80) | ap 0.032 in (0.008 - 0.045) fn 0.016 in/r (0.008 - 0.024) vc 70 sfm (85 - 60) |
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
RM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Concave prismatic section with rail
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut 1-2 -size G2
Cutting edge count(CEDC)
2
Insert seat(SSC_M)
G
Cutting width
(CW)
0.1575 inch
Cutting width lower tolerance(CWTOLL)
-0.0016 inch
Cutting width upper tolerance(CWTOLU)
0.0016 inch
Corner radius
(RE)
0.0787 inch
Corner radius lower tolerance(RETOLL)
-0.002 inch
Corner radius upper tolerance(RETOLU)
0.002 inch
Cutting depth maximum
(CDX)
0.7173 inch
Machine side body angle(BAMS)
0 °
Depth of cut maximum
(APMX)
0.0709 inch
Hand
(HAND)
Neutral
Grade
(GRADE)
1135
Coating(COATING)
CVD TiCrN+Al2O3+TiN
Insert thickness(S)
0.1706 inch
Clearance angle major(AN)
7 °
Insert gauge length(LIG)
0.7917 inch
Weight of item(WT)
0.0079 lb
Insert seat size code imperial view(SSC_N)
G
Release date(ValFrom20)
25/09/2023
Release pack id(RELEASEPACK)
23.2
