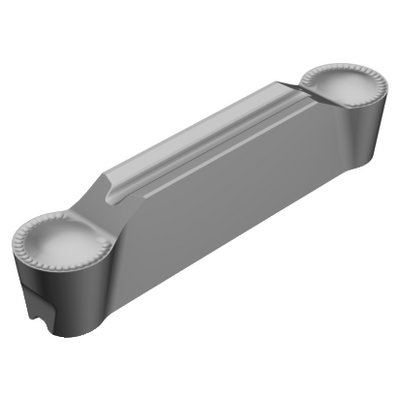

Generic representation
Package quantity: 5
ISO: C2I-H2N-0500-RM 1205
Material Id: 8480023
EAN: 7323227732657
ANSI: C2I-H2N-0500-RM 1205
Start values
| M1.0.Z.AQ, Hardness: 200 HB | ||
| m |  | fn 0.14 mm/r (0.06 - 0.24) vc 180 m/min (235 - 150) |
 | ap 1.2 mm (0.2 - 1.6) fn 0.44 mm/r (0.23 - 0.68) vc 140 m/min (170 - 120) | |
| S2.0.Z.AG, Hardness: 350 HB | ||
| s | | fn 0.14 mm/r (0.06 - 0.24) vc 80 m/min (110 - 60) |
| ap 1 mm (0.2 - 1.4) fn 0.44 mm/r (0.23 - 0.68) vc 45 m/min (85 - 29) | |
| | |
|---|---|---|
| M1.0.Z.AQ, Hardness: 200 HB | ||
| m | fn 0.14 mm/r (0.06 - 0.24) vc 180 m/min (235 - 150) | ap 1.2 mm (0.2 - 1.6) fn 0.44 mm/r (0.23 - 0.68) vc 140 m/min (170 - 120) |
| S2.0.Z.AG, Hardness: 350 HB | ||
| s | fn 0.14 mm/r (0.06 - 0.24) vc 80 m/min (110 - 60) | ap 1 mm (0.2 - 1.4) fn 0.44 mm/r (0.23 - 0.68) vc 45 m/min (85 - 29) |
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
RM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Concave prismatic section with rail
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut 1-2 -size H2
Cutting edge count(CEDC)
2
Insert seat(SSC_M)
H
Cutting width
(CW)
5 mm
Cutting width lower tolerance(CWTOLL)
-0.045 mm
Cutting width upper tolerance(CWTOLU)
0.045 mm
Corner radius
(RE)
2.5 mm
Corner radius lower tolerance(RETOLL)
-0.05 mm
Corner radius upper tolerance(RETOLU)
0.05 mm
Cutting depth maximum
(CDX)
22.87 mm
Machine side body angle(BAMS)
0 °
Depth of cut maximum
(APMX)
2.3 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1205
Coating(COATING)
PVD AlTiN
Insert thickness(S)
4.35 mm
Clearance angle major(AN)
7 °
Insert gauge length(LIG)
25.11 mm
Weight of item(WT)
0.0062 kg
Insert seat size code imperial view(SSC_N)
H
Release date(ValFrom20)
30/05/2024
Release pack id(RELEASEPACK)
24.2
