Generic representation
Package quantity: 5
ISO: C2I-J2N-0600-RF H13A
Material Id: 8194440
EAN: 7323226542523
ANSI: C2I-J2N-0600-RF H13A
Start values
| M1.0.Z.AQ, Hardness: 200 HB | ||
| m |  | fn 0.1 mm/r (0.04 - 0.15) vc 80 m/min (95 - 75) |
 | ap 0.5 mm (0.2 - 1.2) fn 0.25 mm/r (0.14 - 0.57) vc 70 m/min (80 - 65) | |
| K2.2.C.UT, Hardness: 245 HB | ||
| k | | fn 0.1 mm/r (0.04 - 0.15) vc 70 m/min (75 - 65) |
| ap 0.5 mm (0.2 - 1.2) fn 0.25 mm/r (0.14 - 0.57) vc 60 m/min (70 - 60) | |
| N1.3.C.AG, Hardness: 90 HB | ||
| n | | fn 0.1 mm/r (0.04 - 0.15) vc 1500 m/min (1900 - 190) |
| ap 0.5 mm (0.2 - 1.2) fn 0.25 mm/r (0.14 - 0.57) vc 1500 m/min (1900 - 190) | |
| S2.0.Z.AG, Hardness: 350 HB | ||
| s | | fn 0.1 mm/r (0.04 - 0.15) vc 17 m/min (21 - 16) |
| ap 0.5 mm (0.2 - 1.2) fn 0.25 mm/r (0.14 - 0.57) vc 14 m/min (17 - 12) | |
| | |
|---|---|---|
| M1.0.Z.AQ, Hardness: 200 HB | ||
| m | fn 0.1 mm/r (0.04 - 0.15) vc 80 m/min (95 - 75) | ap 0.5 mm (0.2 - 1.2) fn 0.25 mm/r (0.14 - 0.57) vc 70 m/min (80 - 65) |
| K2.2.C.UT, Hardness: 245 HB | ||
| k | fn 0.1 mm/r (0.04 - 0.15) vc 70 m/min (75 - 65) | ap 0.5 mm (0.2 - 1.2) fn 0.25 mm/r (0.14 - 0.57) vc 60 m/min (70 - 60) |
| N1.3.C.AG, Hardness: 90 HB | ||
| n | fn 0.1 mm/r (0.04 - 0.15) vc 1500 m/min (1900 - 190) | ap 0.5 mm (0.2 - 1.2) fn 0.25 mm/r (0.14 - 0.57) vc 1500 m/min (1900 - 190) |
| S2.0.Z.AG, Hardness: 350 HB | ||
| s | fn 0.1 mm/r (0.04 - 0.15) vc 17 m/min (21 - 16) | ap 0.5 mm (0.2 - 1.2) fn 0.25 mm/r (0.14 - 0.57) vc 14 m/min (17 - 12) |

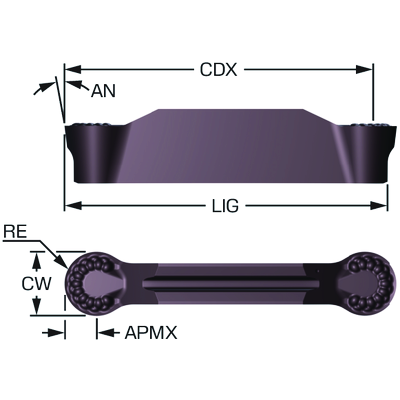

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
RF
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Concave prismatic section with rail
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut 1-2 -size J2
Cutting edge count(CEDC)
2
Insert seat(SSC_M)
J
Cutting width
(CW)
6 mm
Cutting width lower tolerance(CWTOLL)
-0.045 mm
Cutting width upper tolerance(CWTOLU)
0.045 mm
Corner radius
(RE)
3 mm
Corner radius lower tolerance(RETOLL)
-0.05 mm
Corner radius upper tolerance(RETOLU)
0.05 mm
Cutting depth maximum
(CDX)
22.2 mm
Machine side body angle(BAMS)
0 °
Depth of cut maximum
(APMX)
2.8 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
H13A
Insert thickness(S)
4.35 mm
Clearance angle major(AN)
7 °
Insert gauge length(LIG)
24.99 mm
Weight of item(WT)
0.008 kg
Insert seat size code imperial view(SSC_N)
J
Release date(ValFrom20)
25/09/2024
Release pack id(RELEASEPACK)
24.2
