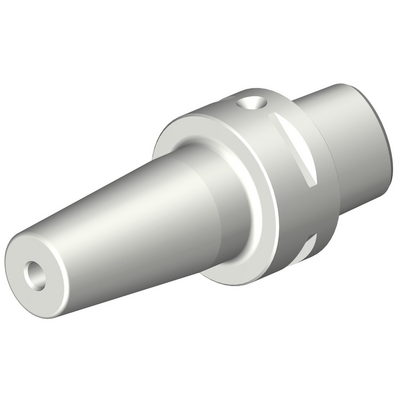

Specific representation
Package quantity: 1
ISO: C4-391.19-06 075
Material Id: 5728005
EAN: 12071953
ANSI: C4-391.19-06 075
Technical illustrations
Product data
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C4
Connection - workpiece side
(ADINTWS)
Cylindrical clamping (shrink fit) -metric: 6
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
axial concentric exit
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
40 mm
Functional diameter(DFC)
28 mm
Standard number(STDNO)
ISO26623-1
Connection diameter workpiece side(DCONWS)
6 mm
Kappa (z-axis rot)(KAP)
0 °
Functional length(LF)
75 mm
Body diameter(BD_1)
20 mm
Body diameter(BD_2)
27 mm
Body diameter(BD_3)
40 mm
Body length(LB_1)
44.1 mm
Body length(LB_2)
55 mm
Body length(LB_3)
75 mm
Body half taper angle(BHTA_1)
4.5 °
Body half taper angle(BHTA_2)
0 °
Body half taper angle(BHTA_3)
0 °
Rotational speed maximum(RPMX)
39,000 1/min
Body material
(BMC)
Steel
Balancing method code(BLMC)
Balancing by design
Weight of item(WT)
0.4288 kg
Overall length(OAL)
99 mm
Release date(ValFrom20)
20/06/2005
Release pack id(RELEASEPACK)
05.2
