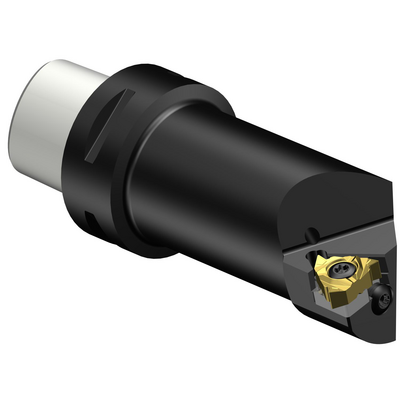

Specific representation
Made-to-order
Package quantity: 1
ISO: C5-266LKF-27105-22
Material Id: 5728971
EAN: 12325331
ANSI: C5-266LKF-27105-22
Technical illustrations
Product data
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroThread -internal size 22 (266.LL-22)
Axial clearance angle(ALP)
-15 °
Thread helix correction angle(THCA)
1 °
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C5
Minimum bore diameter
(DMIN)
50 mm
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
105 mm
Usable length
(LU)
84 mm
Hand
(HAND)
Left
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
40 bar
Connection diameter machine side(DCONMS)
50 mm
Functional length(LF)
105 mm
Functional width(WF)
26.9 mm
Functional height(HF)
0 mm
Body diameter(BD)
40 mm
Overall length(OAL)
135 mm
Torque(TQ)
5 Nm
Weight of item(WT)
1.1 kg
Insert seat(SSC_M)
22
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
25/02/2008
Release pack id(RELEASEPACK)
08.1
