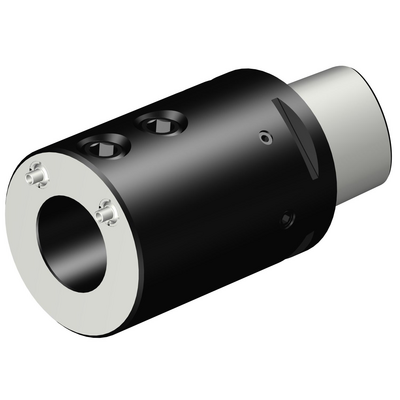

Specific representation
List price: 749.00 GBP
Available
Package quantity: 1
ISO: C8-131-00112-40
Material Id: 5730009
EAN: 11778550
ANSI: C8-131-00112-40
Technical illustrations
Product data
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C8
Connection - workpiece side
(ADINTWS)
Cylindrical clamping w/ flats (sleeve) -metric: 40
Minimum overhang(OHN)
112 mm
Maximum overhang
(OHX)
112 mm
Hand
(HAND)
Neutral
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
axial concentric exit
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
80 mm
Connection diameter workpiece side(DCONWS)
40 mm
Functional length(LF_1)
112 mm
Functional width(WF_1)
0 mm
Functional height(HF_1)
0 mm
Body diameter(BD_1)
80 mm
Body length(LB)
112 mm
Overall length(OAL)
160 mm
Maximum tool changer interference diameter(DIX)
80 mm
Torque(TQ)
50 Nm
Body material
(BMC)
Steel
Weight of item(WT)
4.19 kg
Release date(ValFrom20)
26/01/2004
Release pack id(RELEASEPACK)
04.1
