  • Tools
  • Inserts
  • ISO inserts
  • CCET 06 02 02-UM 1105

CCET 06 02 02-UM 1105content_copy

CCET 06 02 02-UM 1105

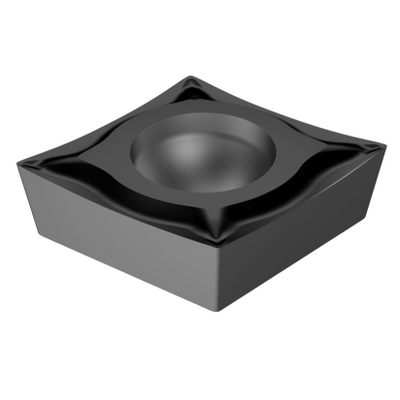

Generic representation
Being replaced by CCET 06 02 02-UM 1205
Available
Different grade vs. the original product – Please check cutting speed.
List price: 133.00 PLNfile_copy
Available within a week
Package quantity: 10
ISO: CCET 06 02 02-UM 1105file_copy
Material Id: 5724356file_copy
EAN: 12269062file_copy
ANSI: CCET 2(1.5)0-UM 1105file_copy
Start values  (KAPR  95 deg )
M1.0.Z.AQ, Hardness: 200 HB
M
ap 0.5  mm   (0.2 - 4)
fn 0.03  mm/r   (0.01 - 0.08)
hex 0.03  mm/r   (0.01 - 0.08)
vc 260  m/min   (260 - 230)
S2.0.Z.AG, Hardness: 350 HB
S
ap 0.4  mm   (0.2 - 0.7)
fn 0.02  mm/r   (0.01 - 0.06)
hex 0.02  mm/r   (0.01 - 0.06)
vc 80  m/min   (80 - 80)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
M
S
Search Icon
Chip breaker(CBMD)info
UMSearch Icon
Operation type (CTPT)info
pre-machining with demand on surfaceSearch Icon
Insert mounting style code (metric)(IFS)info
Partly cylindrical, 40-60 deg countersink on one or two sidesSearch Icon
Fixing hole diameter(D1)info
2.8 mmSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
CC0602Search Icon
Cutting edge count(CEDC)info
2Search Icon
Inscribed circle diameter(IC)info
6.35 mmSearch Icon
Insert shape code(SC)info
Rhombic 80Search Icon
Cutting edge effective length(LE)info
6.248 mmSearch Icon
Corner radius (RE)info
0.2 mmSearch Icon
Hand (HAND)info
NeutralSearch Icon
Grade (GRADE)info
1105Search Icon
Substrate(SUBSTRATE)info
HCSearch Icon
Coating(COATING)info
PVD TiAlNSearch Icon
Insert thickness(S)info
2.3813 mmSearch Icon
Clearance angle major(AN)info
7 °Search Icon
Weight of item(WT)info
0.0006 kgSearch Icon
Insert seat(SSC_M)info
06Search Icon
Insert seat size code imperial view(SSC_N)info
1/4Search Icon
Release date(ValFrom20)info
29/01/2007Search Icon
Release pack id(RELEASEPACK)info
07.1Search Icon
