Generic representation
Package quantity: 5
ISO: CCGW09T308S01020F 7015
Material Id: 5724860
EAN: 12012534
ANSI: CCGW3(2.5)2S0320F 7015
Start values (KAPR 95 deg )
H1.3.Z.HA, Hardness: 60 HRC
h
ap 0.15 mm (0.07 - 0.4)
fn 0.14 mm/r (0.07 - 0.27)
hex 0.08 mm/r (0.04 - 0.16)
vc 180 m/min (195 - 160)

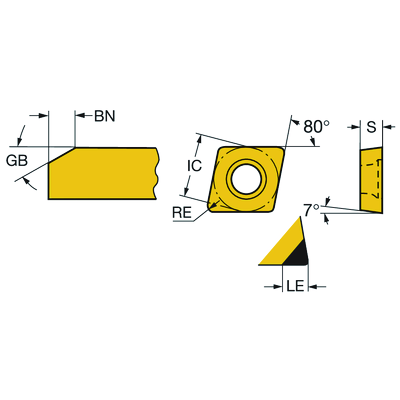

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4.4 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CC09T3
Cutting edge count(CEDC)
2
Inscribed circle diameter(IC)
9.525 mm
Insert shape code(SC)
Rhombic 80
Cutting edge effective length(LE)
2.5 mm
Corner radius
(RE)
0.8 mm
Major cutting edge angle(KRINS)
95 °
Face land width(BN)
0.1 mm
Face land angle(GB)
20 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7015
Substrate(SUBSTRATE)
BC
Coating(COATING)
PVD TiN
Insert thickness(S)
3.9688 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0028 kg
Insert seat(SSC_M)
09
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
02/01/2006
Release pack id(RELEASEPACK)
06.1
