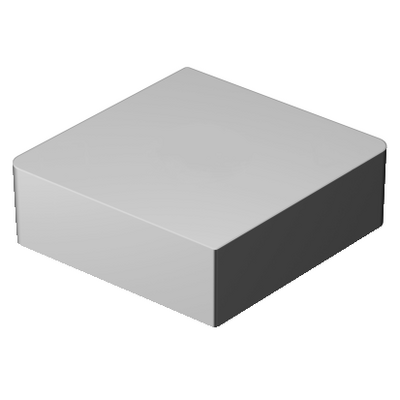

Generic representation
Package quantity: 10
ISO: CNGN120716T02520 6190
Material Id: 5724612
EAN: 12458703
ANSI: CNG454T0820 6190
Start values (KAPR 95 deg )
K2.2.C.UT, Hardness: 245 HB
k
ap 2 mm (1 - 3)
fn 0.2 mm/r (0.15 - 0.5)
hex 0.2 mm/r (0.15 - 0.5)
vc 730 m/min (780 - 510)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Without fixing hole
Insert size and shape
(CUTINT_SIZESHAPE)
CN1207
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Rhombic 80
Cutting edge effective length(LE)
11.2959 mm
Corner radius
(RE)
1.5875 mm
Face land width(BN)
0.25 mm
Face land angle(GB)
20 °
Hand
(HAND)
Neutral
Grade
(GRADE)
6190
Substrate(SUBSTRATE)
CN
Insert thickness(S)
7.9375 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0042 kg
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
10/09/2009
Release pack id(RELEASEPACK)
09.2
