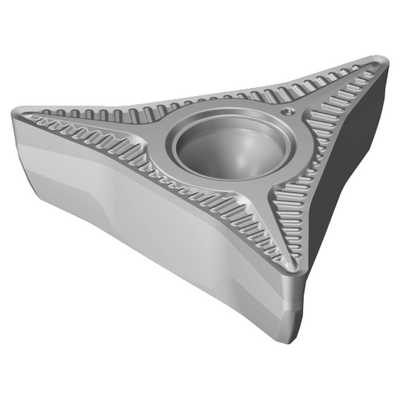

Generic representation
Available
Package quantity: 5
ISO: CP-A1104-L5 1210
Material Id: 8432089
EAN: 7323227513126
ANSI: CP-A1104-L5 1210
Start values (KAPR 30 deg )
S2.0.Z.AG, Hardness: 350 HB
s
ap 1 mm (0.25 - 3)
fn 0.3 mm/r (0.2 - 0.5)
hex 0.15 mm/r (0.1 - 0.25)
vc 60 m/min (85 - 34)
Start values (KAPR 115 deg )
S2.0.Z.AG, Hardness: 350 HB
s
ap 0.4 mm (0.2 - 0.4)
fn 0.15 mm/r (0.1 - 0.25)
hex 0.15 mm/r (0.1 - 0.25)
vc 60 m/min (85 - 34)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
L5
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
3.7 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroTurn PRIME CP-A11
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
11 mm
Corner radius
(RE)
0.4 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1210
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD AlTiCrN
Insert thickness(S)
6 mm
Clearance angle major(AN)
6 °
Weight of item(WT)
0.013 kg
Insert seat(SSC_M)
CP-A11
Insert seat size code imperial view(SSC_N)
CP-A11
Release date(ValFrom20)
26/02/2024
Release pack id(RELEASEPACK)
24.1
