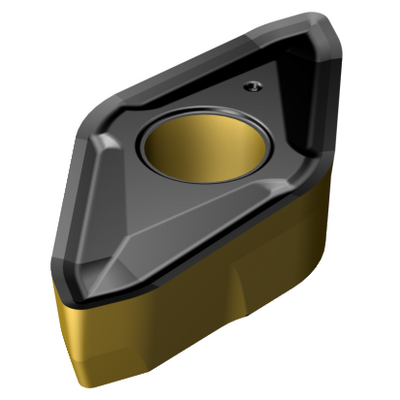

Generic representation
Being replaced by CP-B1208D-M7 S205
Available within a week
Not compatible with tools related to original product.
Available
Package quantity: 5
ISO: CP-B1108-H3 S205
Material Id: 8091842
EAN: 7323226114584
ANSI: CP-B1108-H3 S205
Start values (KAPR 25 deg )
S2.0.Z.AG, Hardness: 350 HB
s2
ap 2 mm (0.5 - 4)
fn 0.5 mm/r (0.5 - 1.02)
hex 0.21 mm/r (0.21 - 0.43)
vc 85 m/min (85 - 60)
Start values (KAPR 95 deg )
S2.0.Z.AG, Hardness: 350 HB
s2
ap 2 mm (0.5 - 3)
fn 0.21 mm/r (0.21 - 0.43)
hex 0.21 mm/r (0.21 - 0.43)
vc 85 m/min (85 - 60)

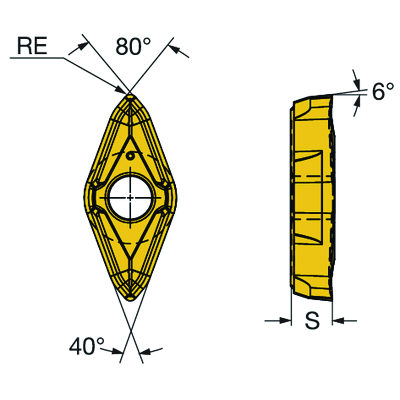

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
H3
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.16 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroTurn PRIME CP-B11
Cutting edge count(CEDC)
2
Inscribed circle diameter(IC)
11 mm
Corner radius
(RE)
0.8 mm
Insert rake angle(GAN)
11 °
Hand
(HAND)
Neutral
Grade
(GRADE)
S205
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
5 mm
Clearance angle major(AN)
6 °
Weight of item(WT)
0.0091 kg
Insert seat(SSC_M)
CP-B11
Insert seat size code imperial view(SSC_N)
CP-B11
Release date(ValFrom20)
01/09/2021
Release pack id(RELEASEPACK)
21.2
