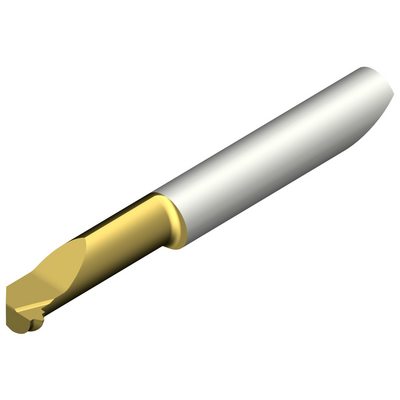

CXS-05TH24WH-5215R 1025content_copy

CXS-05TH24WH-5215R 1025

Specific representation
List price: 60.40 EURfile_copy
Available
Package quantity: 1
ISO: CXS-05TH24WH-5215R 1025file_copy
Material Id: 5726371file_copy
EAN: 11788475file_copy
ANSI: CXS-05TH24WH-5215R 1025file_copy
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
P
M
K
N
S
H
Search Icon
Thread form(THFT)info
BSF (Withworth 55°)Search Icon
Threads per inch(TPI)info
24Search Icon
Thread profile type(TPT)info
full profileSearch Icon
Thread tolerance class(TCTR)info
Class ASearch Icon
Theoretical thread height(HA)info
0.0335 inSearch Icon
Thread height difference(HB)info
0.0067 inSearch Icon
Corner radius (RE)info
0.0059 inSearch Icon
Connection - machine side(ADINTMS)info
CoroTurn XS -metric: 5Search Icon
Minimum bore diameter (DMIN)info
0.2047 inSearch Icon
Maximum overhang (OHX)info
0.6772 inSearch Icon
Usable length (LU)info
0.5906 inSearch Icon
Hand (HAND)info
RightSearch Icon
Grade (GRADE)info
1025Search Icon
Substrate(SUBSTRATE)info
HCSearch Icon
Coating(COATING)info
PVD TiAlN+TiNSearch Icon
Coolant entry style(CNSC)info
without coolant entrySearch Icon
Connection diameter(DCONMS)info
0.1969 inSearch Icon
Protruding length(LPR)info
1.4665 inSearch Icon
Functional length(LF)info
1.435 inSearch Icon
Functional width(WF)info
0.0965 inSearch Icon
Functional height(HF)info
0 inSearch Icon
Body width(WB)info
0.1476 inSearch Icon
Weight of item(WT)info
0.0342 lbSearch Icon
Overall length(OAL)info
1.5984 inSearch Icon
Standard number(STDNO_1)info
ISO 228-1982Search Icon
Standard number(STDNO_2)info
BS 2779-1973Search Icon
Standard number(STDNO_3)info
BS 84-1956Search Icon
Release date(ValFrom20)info
26/01/2004Search Icon
Release pack id(RELEASEPACK)info
04.1Search Icon
