CXS-06TH100VM-6215L 1025
CXS-06TH100VM-6215L 1025
CoroTurn® XS, solid carbide tool for thread turningchevron_right

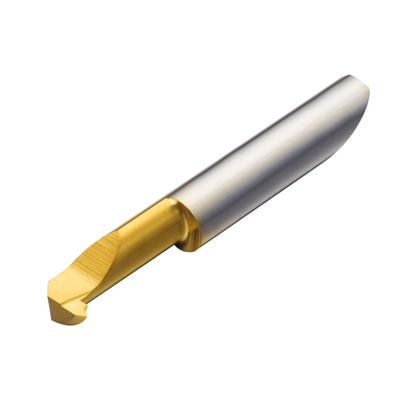

Generic representation
Available
Package quantity: 1
ISO: CXS-06TH100VM-6215L 1025
Material Id: 5726619
EAN: 11788803
ANSI: CXS-06TH100VM-6215L 1025
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Thread form(THFT)
M (Metric 60°), MF 60°, UN 60°, UNC 60°, UNF 60°
Minimum thread pitch(TPN)
1 mm
Maximum thread pitch(TPX)
1.25 mm
Minimum threads per inch(TPIN)
20
Maximum threads per inch(TPIX)
24
Thread profile type(TPT)
partial profile
Theoretical thread height(HA)
0.8 mm
Thread height difference(HB)
0.1 mm
Spot chamfer(CF)
0.12 mm
Connection - machine side(ADINTMS)
CoroTurn XS -metric: 6
Minimum bore diameter
(DMIN)
6.2 mm
Maximum overhang
(OHX)
17.45 mm
Usable length
(LU)
15 mm
Hand
(HAND)
Left
Grade
(GRADE)
1025
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiN
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
6 mm
Protruding length(LPR)
37.25 mm
Functional length(LF)
36.7 mm
Functional width(WF)
2.95 mm
Functional height(HF)
0 mm
Body width(WB)
3.55 mm
Weight of item(WT)
0.0187 kg
Overall length(OAL)
40.85 mm
Release date(ValFrom20)
26/01/2004
Release pack id(RELEASEPACK)
04.1
