DNGA150412S02035F 7125 content_copy

DNGA150412S02035F 7125

T-Max® P, insert for turningchevron_right

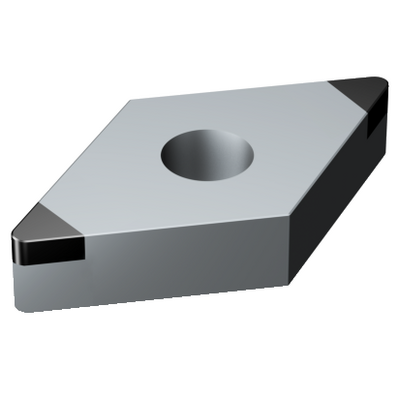

Generic representation

Out of stock

Package quantity: 5

ISO: DNGA150412S02035F 7125file_copy

Material Id: 7586859file_copy

EAN: 7323223812544file_copy

ANSI: DNGA433S0835F 7125file_copy

Start values (KAPR 93 deg )

H1.3.Z.HA, Hardness: 60 HRC

a_p 0.2 mm (0.07 - 0.6)

f_n 0.16 mm/r (0.07 - 0.33)

h_ex 0.09 mm/r (0.04 - 0.18)

v_c 160 m/min (175 - 140)

Technical illustrations

Product data

MetricInch

Workpiece material(s)(TMC1ISO)info

Operation type (CTPT)info

finishing

Insert mounting style code (metric)(IFS)info

Cylindrical fixing hole

Fixing hole diameter(D1)info

5.156 mm

Insert size and shape (CUTINT_SIZESHAPE)info

DN1504

Cutting edge count(CEDC)info

Inscribed circle diameter(IC)info

12.7 mm

Insert shape code(SC)info

Rhombic 55

Cutting edge effective length(LE)info

3.17 mm

Corner radius (RE)info

1.2 mm

Face land width(BN)info

0.2 mm

Face land angle(GB)info

35 °

Insert rake angle(GAN)info

0 °

Hand (HAND)info

Neutral

Grade (GRADE)info

7125

Substrate(SUBSTRATE)info

Coating(COATING)info

PVD AlTiCrN

Insert thickness(S)info

4.7625 mm

Clearance angle major(AN)info

0 °

Weight of item(WT)info

0.0063 kg

Insert seat(SSC_M)info

Insert seat size code imperial view(SSC_N)info

1/2

Release date(ValFrom20)info

22/09/2018

Release pack id(RELEASEPACK)info

18.2
