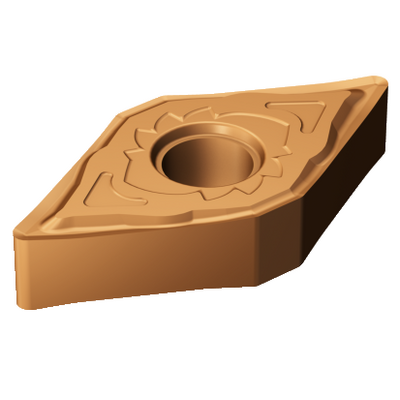

Generic representation
Package quantity: 10
ISO: DNGG 15 04 02-SGF 1125
Material Id: 6851280
EAN: 7323220191277
ANSI: DNGG 43(.50)-SGF 1125
Start values (KAPR 93 deg )
S2.0.Z.AG, Hardness: 350 HB
s
ap 0.2 mm (0.08 - 3)
fn 0.04 mm/r (0.02 - 0.1)
hex 0.04 mm/r (0.02 - 0.1)
vc 34 m/min (34 - 34)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
SGF
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
DN1504
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Rhombic 55
Cutting edge effective length(LE)
13.45 mm
Corner radius
(RE)
0.1984 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1125
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiAlN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0105 kg
Insert seat(SSC_M)
15
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
22/09/2015
Release pack id(RELEASEPACK)
15.2
