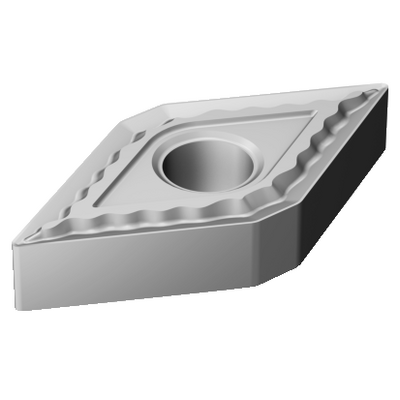

Generic representation
Package quantity: 10
ISO: DNMG 15 06 12-QM 1210
Material Id: 8432181
EAN: 7323227514048
ANSI: DNMG 443-QM 1210
Start values (KAPR 93 deg )
S2.0.Z.AG, Hardness: 350 HB
s
ap 2.4 mm (1.15 - 4)
fn 0.25 mm/r (0.2 - 0.34)
hex 0.25 mm/r (0.2 - 0.34)
vc 34 m/min (45 - 21)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
QM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
DN1506
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Rhombic 55
Cutting edge effective length(LE)
14.3038 mm
Corner radius
(RE)
1.1906 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1210
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD AlTiCrN
Insert thickness(S)
6.35 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.016 kg
Insert seat(SSC_M)
15
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
26/02/2024
Release pack id(RELEASEPACK)
24.1
