DTFNL 3225P 16
DTFNL 3225P 16
file_copy
DTFNL 3225P 16

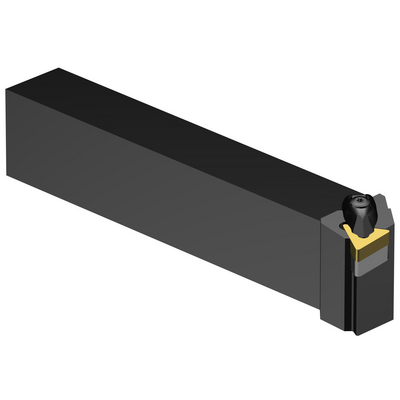

T-Max® P, shank tool for turning
chevron_right
bookmark
Save to list
balance
Compare product
Specific representation
deployed_code
Show 3D model
Made-to-order
Package quantity: 1
ISO: DTFNL 3225P 16
file_copy
Material Id: 5732048
file_copy
EAN: 11586573
file_copy
ANSI: DTFNL 3225P 16
file_copy
remove
add
shopping_cart
Add to cart

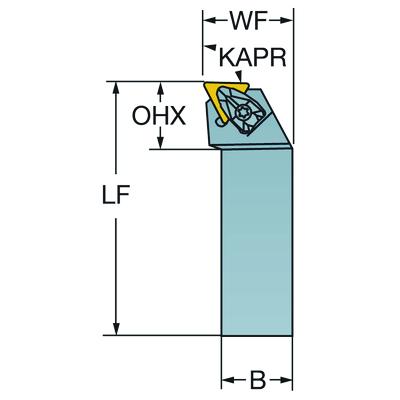

Technical illustrations
Product data
Metric
Inch
Tool cutting edge angle
(KAPR_1)
info
91 °
Lead angle
(PSIR)
info
-1 °
Clamping type code
(MTP)
info
clamp on top of insert and into hole
Insert type
(CUTINT_MASTER)
info
TNMG 160408
Connection - machine side
(ADINTMS)
info
Rectangular shank -metric: 32 x 25
Maximum ramping angle
(RMPX)
info
0 °
Workpiece side body angle
(BAWS)
info
0 °
Machine side body angle
(BAMS)
info
0 °
Maximum overhang
(OHX)
info
24.1 mm
Hand
(HAND)
info
Left
Coolant exit style
(CXSC)
info
no coolant exit
Coolant entry style
(CNSC)
info
without coolant entry
Shank width
(B)
info
25 mm
Shank height
(H)
info
32 mm
Functional length
(LF)
info
170 mm
Functional width
(WF)
info
32 mm
Functional height
(HF)
info
32 mm
Orthogonal rake angle
(GAMO)
info
-6 °
Inclination angle
(LAMS)
info
-6 °
Torque
(TQ)
info
1.7 Nm
Body material
(BMC)
info
Steel
Weight of item
(WT)
info
1.043 kg
Master insert identification
(MIID)
info
TNMG 16 04 08
Overall length
(OAL)
info
170 mm
Insert seat
(SSC_M)
info
16
Insert seat size code imperial view
(SSC_N)
info
3/8
Release date
(ValFrom20)
info
11/08/2003
Release pack id
(RELEASEPACK)
info
03.2
