L148C-11-0602content_copy

L148C-11-0602

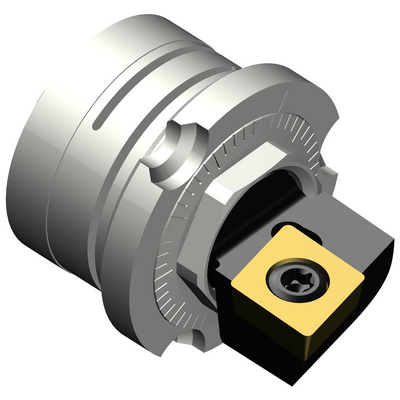

Fine boring unitchevron_right
Specific representation
List price: 478.00 GBPfile_copy
Available
Package quantity: 1
ISO: L148C-11-0602file_copy
Material Id: 5734791file_copy
EAN: 10323272file_copy
ANSI: L148C-11-0602file_copy

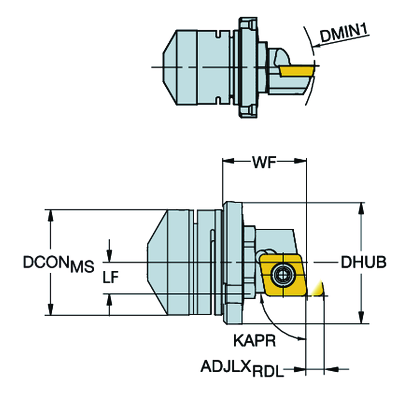

Technical illustrations
Product data
Tool cutting edge angle (KAPR)info
90 °Search Icon
Clamping type code(MTP)info
clamp with screw through holeSearch Icon
Insert type(CUTINT_MASTER)info
CCMT 060200 (RE<0.4)Search Icon
Connection - machine side(ADINTMS)info
Fine Boring Unit -straight mounting -size 1Search Icon
Minimum bore diameter (DMIN)info
27 mmSearch Icon
Adjustability(ADJBY)info
YesSearch Icon
Hand (HAND)info
LeftSearch Icon
Coolant entry style(CNSC)info
without coolant entrySearch Icon
Functional length(LF)info
12.9 mmSearch Icon
Functional width(WF)info
5.1 mmSearch Icon
Overall length(OAL)info
24.1 mmSearch Icon
Torque(TQ)info
0.9 NmSearch Icon
Weight of item(WT)info
0.023 kgSearch Icon
Insert seat(SSC_M)info
06Search Icon
Insert seat size code imperial view(SSC_N)info
1/4Search Icon
Release date(ValFrom20)info
24/02/1992Search Icon
Release pack id(RELEASEPACK)info
92.1Search Icon
