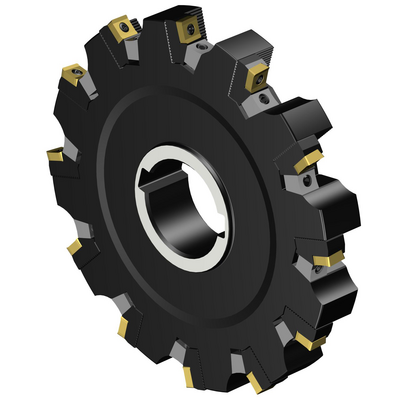

L331.52-203T51MMcontent_copy

L331.52-203T51MM

Specific representation
List price: 2 126.00 GBPfile_copy
Made-to-order
Package quantity: 1
ISO: L331.52-203T51MMfile_copy
Material Id: 5735384file_copy
EAN: 10701946file_copy
ANSI: L331.52-203T51MMfile_copy
Technical illustrations
Technical illustrations
Product data
Cutting diameter (DC)info
203.2 mmSearch Icon
Working engagement ratio maximum(AERMX_FFW)info
0.327Search Icon
Clamping type code(MTP)info
clamp with screw through holeSearch Icon
Insert type(CUTINT_MASTER)info
CoroMill 331 -size 11 (N/L331.1A-11RE0.20-1.54)Search Icon
Peripheral effective cutting edge count(ZEFP)info
12Search Icon
Connection - machine side(ADINTMS)info
Arbor -ISO 240 -2 key drives -inch: 2Search Icon
Hand (HAND)info
LeftSearch Icon
Coolant entry style(CNSC)info
without coolant entrySearch Icon
Connection diameter machine side(DCONMS)info
50.8 mmSearch Icon
Hub diameter(DHUB)info
67.9958 mmSearch Icon
Hub thickness(THUB)info
31.1912 mmSearch Icon
Drive count(DRVCT)info
2Search Icon
Functional length(LF)info
29.1846 mmSearch Icon
Torque(TQ)info
3 NmSearch Icon
Rotational speed maximum(RPMX)info
9,600 1/minSearch Icon
Weight of item(WT)info
8.32 kgSearch Icon
Body diameter(BD)info
198 mmSearch Icon
Body length(LB)info
26.6 mmSearch Icon
Overall length(OAL)info
31.1912 mmSearch Icon
Release date(ValFrom20)info
25/04/1994Search Icon
Release pack id(RELEASEPACK)info
94.2Search Icon
