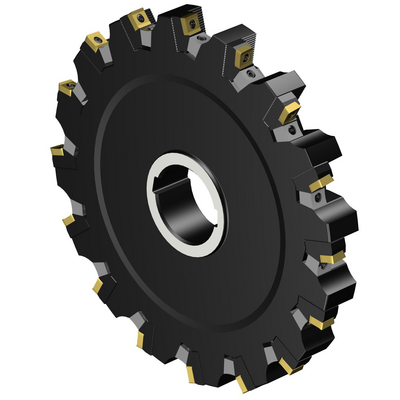

L331.52-250S50MM
L331.52-250S50MM
Specific representation
List price: 2 596.00 GBP
Available
Package quantity: 1
ISO: L331.52-250S50MM
Material Id: 5735385
EAN: 10701622
ANSI: L331.52-250S50MM
Technical illustrations
Technical illustrations
Product data
Cutting diameter
(DC)
250 mm
Cutting depth maximum
(CDX)
89.5 mm
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 11 (N/L331.1A-11RE0.20-1.54)
Peripheral effective cutting edge count(ZEFP)
16
Connection - machine side(ADINTMS)
Arbor -ISO 240 -2 key drives -metric: 50
Hand
(HAND)
Left
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
50 mm
Hub diameter(DHUB)
69 mm
Hub thickness(THUB)
31.2 mm
Drive count(DRVCT)
2
Functional length(LF)
29.2 mm
Torque(TQ)
3 Nm
Rotational speed maximum(RPMX)
8,500 1/min
Weight of item(WT)
11.2 kg
Body diameter(BD)
244 mm
Body length(LB)
26.6 mm
Overall length(OAL)
31.2 mm
Release date(ValFrom20)
25/04/1994
Release pack id(RELEASEPACK)
94.2
