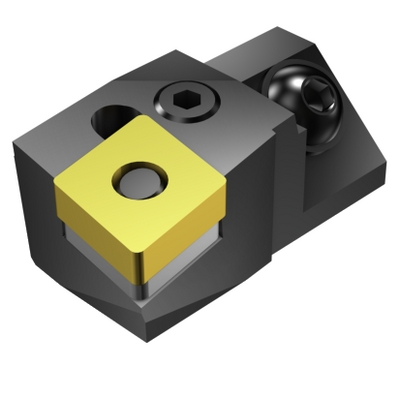

Generic representation
Package quantity: 1
ISO: L441.31-2030-1911
Material Id: 5734374
EAN: 10348236
ANSI: L441.31-2030-1911
Technical illustrations
Product data
Coolant exit style(CXSC)
no coolant exit
Clamping type code(MTP)
clamp with pin through hole
Connection - machine side(ADINTMS)
Cartridge, general -size 2030
Insert type(CUTINT_MASTER)
CNMG 190612
Maximum overhang
(OHX)
60 mm
Hand
(HAND)
Left
Shank width(B)
20 mm
Shank height(H)
26 mm
Functional length(LF)
60 mm
Functional width(WF)
30 mm
Functional height(HF)
20 mm
Weight of item(WT)
0.2156 kg
Overall length(OAL)
60 mm
Insert seat(SSC_M)
19
Insert seat size code imperial view(SSC_N)
3/4
Release date(ValFrom20)
21/04/1975
Release pack id(RELEASEPACK)
75.1
