LNCX 18 06 AZ R-11 3040 content_copy

LNCX 18 06 AZ R-11 3040

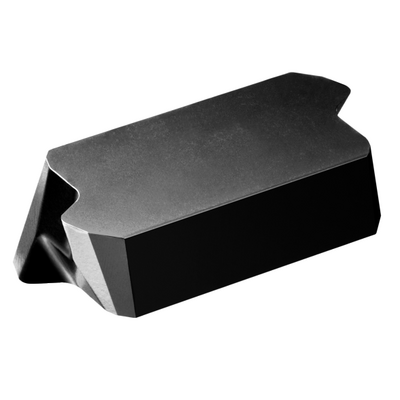

Generic representation
Out of stock
Package quantity: 10
ISO: LNCX 18 06 AZ R-11 3040file_copy
Material Id: 5735198file_copy
EAN: 10932585file_copy
ANSI: LNCX 18 06 AZ R-11 3040file_copy
Start values  (KAPR  44 deg )
P2.1.Z.AN, Hardness: 175 HB
P
fz 0.014  in   (0.004 - 0.04)
hex 0.01  in   (0.003 - 0.028)
vc 670  sfm   (950 - 275)
K2.2.C.UT, Hardness: 245 HB
K
fz 0.014  in   (0.004 - 0.04)
hex 0.01  in   (0.003 - 0.028)
vc 510  sfm   (730 - 210)
H1.3.Z.HA, Hardness: 60 HRC
H
fz 0.014  in   (0.004 - 0.04)
hex 0.01  in   (0.003 - 0.028)
vc 95  sfm   (150 - 28)
CALIFORNIA WARNING:

This product can expose you to chemicals including Cobalt which is known to the State of California to cause Cancer. For more information go to www.P65Warnings.ca.gov.

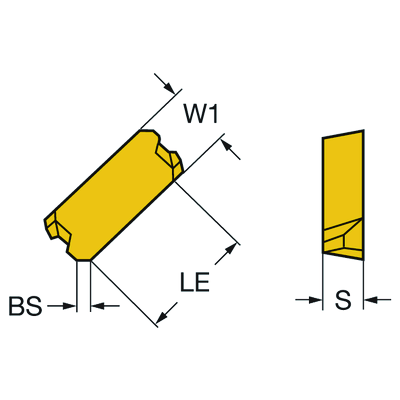

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
P
K
H
Search Icon
Operation type (CTPT)info
heavySearch Icon
Insert mounting style code (metric)(IFS)info
Without fixing holeSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
Mill 45 -LN 1806AZ-11/31Search Icon
Cutting edge count(CEDC)info
4Search Icon
Insert width(W1)info
0.3937 inSearch Icon
Insert shape code(SC)info
RectangularSearch Icon
Cutting edge effective length(LE)info
0.739 inSearch Icon
Depth of cut maximum (APMX)info
0.4724 inSearch Icon
Wiper edge length(BS)info
0.0787 inSearch Icon
Wiper edge radius(BSR)info
4.9213 inSearch Icon
Corner radius (RE)info
0 inSearch Icon
Major cutting edge angle(KRINS)info
44 °Search Icon
Insert rake angle(GAN)info
0 °Search Icon
Hand (HAND)info
Right handSearch Icon
Grade (GRADE)info
3040Search Icon
Substrate(SUBSTRATE)info
HCSearch Icon
Coating(COATING)info
CVD TiCN+Al2O3Search Icon
Insert thickness(S)info
0.252 inSearch Icon
Weight of item(WT)info
0.0405 lbSearch Icon
Insert seat(SSC_M)info
18Search Icon
Insert seat size code imperial view(SSC_N)info
18Search Icon
Release date(ValFrom20)info
17/06/1996Search Icon
Release pack id(RELEASEPACK)info
96.3Search Icon
