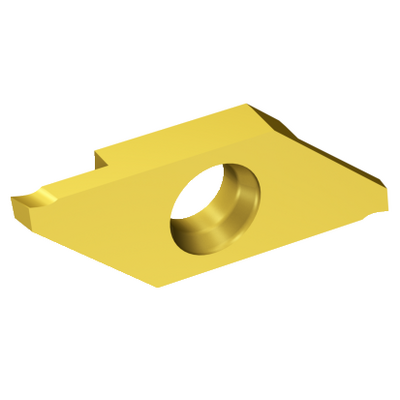

Generic representation
Available within a week
Package quantity: 5
ISO: MACR 3 100-N 1025
Material Id: 5733382
EAN: 11881984
ANSI: MACR 3 100-N 1025
Start values (Primary (Radial) KAPR 90 deg)
p
fn0.06 mm/r (0.02 - 0.1)
vc160 m/min (190 - 145)
m
fn0.06 mm/r (0.02 - 0.1)
vc140 m/min (170 - 125)
n
fn0.06 mm/r (0.02 - 0.1)
vc290 m/min (360 - 36)

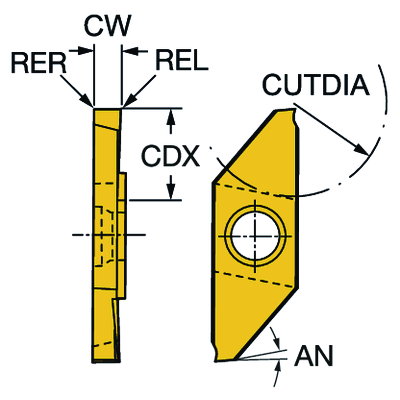

Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
MAC
Operation type
(CTPT)
finishing
Insert mounting style code(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut XS -size 3R
Cutting edge count(CEDC)
2
Insert seat(SSC_M)
3
Cutting width
(CW)
1 mm
Cutting width lower tolerance(CWTOLL)
-0.02 mm
Cutting width upper tolerance(CWTOLU)
0.02 mm
Corner radius left(REL)
0.05 mm
Corner radius right(RER)
0.05 mm
Corner radius lower tolerance(RETOLL)
-0.03 mm
Corner radius upper tolerance(RETOLU)
0.03 mm
Cutting depth maximum
(CDX)
6.3 mm
Machine side body angle(BAMS)
0 °

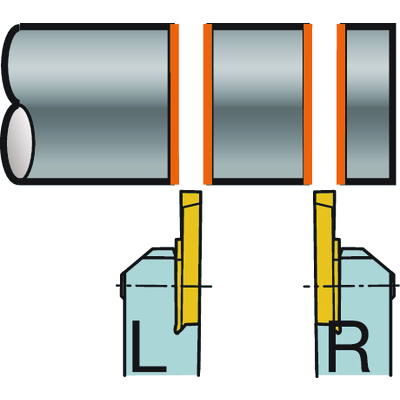

Hand
(HAND)
Right
Grade
(GRADE)
1025
Coating(COATING)
PVD TiAlN+TiN
Insert thickness(S)
3.175 mm
Clearance angle major(AN)
6 °
Weight of item(WT)
0.0031 kg
Insert seat size code imperial view(SSC_N)
3
Release date(ValFrom20)
09/08/2004
Release pack id(RELEASEPACK)
04.2
